5.0SMLJ70AHE3 Datasheet 5000 Watt TVS

Manufacturer: Micro Commercial Components

Download the 5.0SMLJ70AHE3 datasheet PDF. This datasheet also includes the 5.0SMLJ5.0AHE3 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (5.0SMLJ5.0AHE3-MCC.pdf) that lists specifications for multiple related part numbers.

General Description

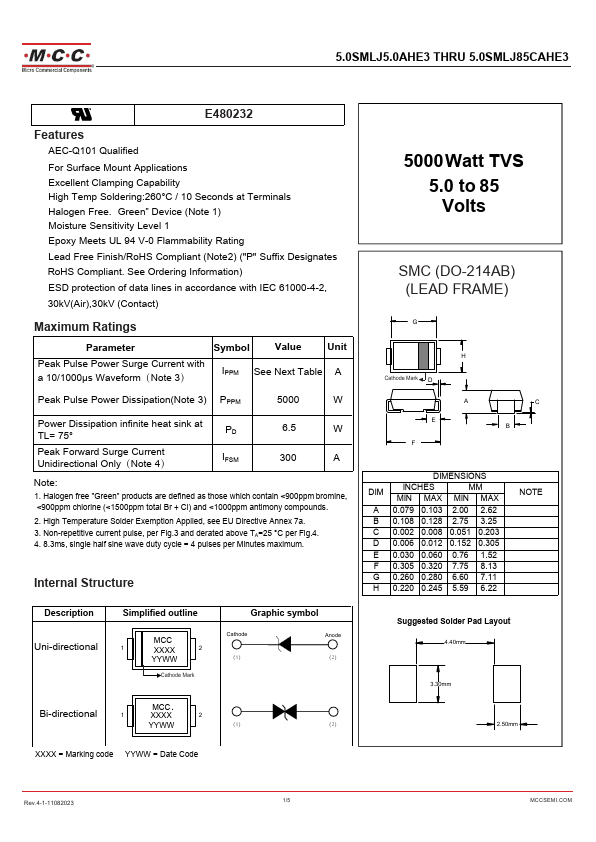

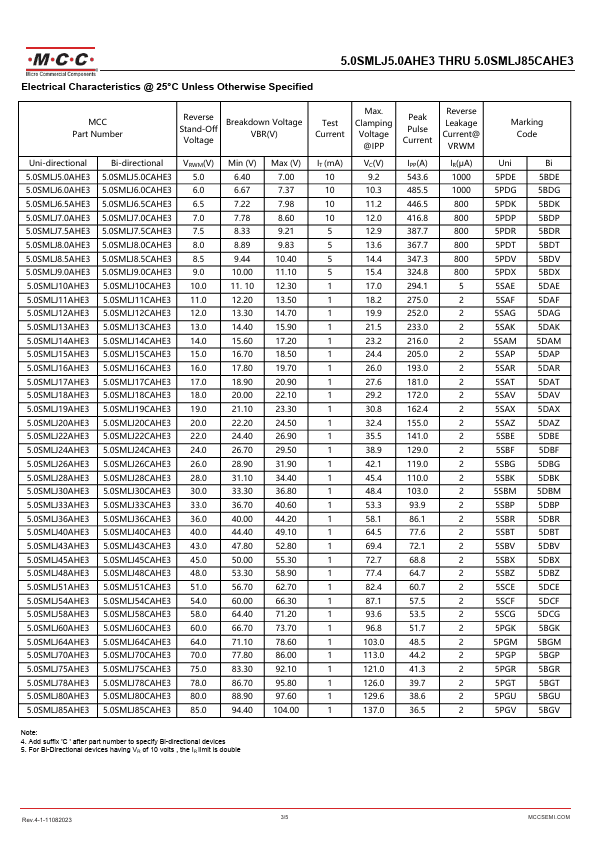

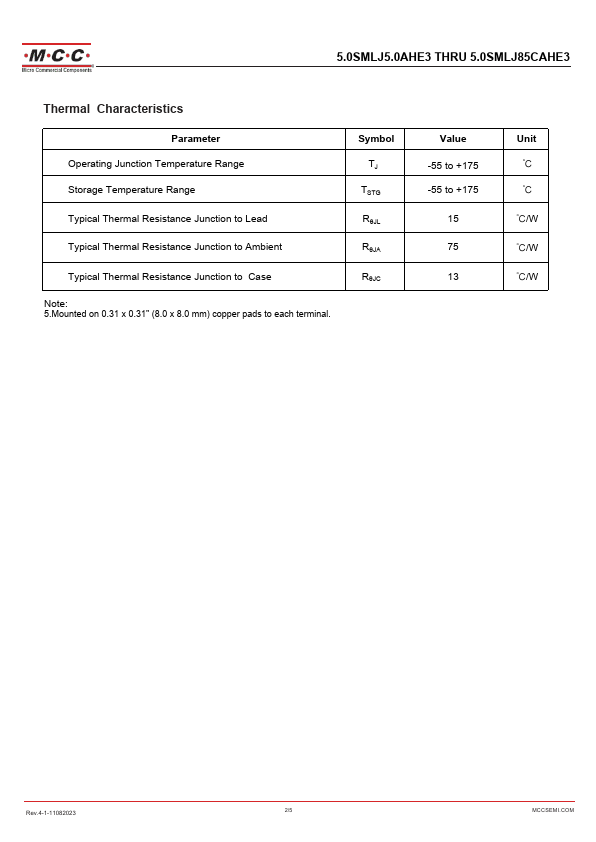

Uni-directional Simplified outline MCC 1 XXXX 2 YYWW Cathode Mark Graphic symbol Cathode Anode （1） （2） Bi-directional 1 XMXCXCX·· 2 YYWW （1） （2） 5000 Watt TVS 5.0 to 85 Volts SMC (DO-214AB) (LEAD FRAME) G H Cathode Mark D A E F C B DIMENSIONS DIM INCHES MIN MAX MM MIN MAX A 0.079 0.103 2.00 2.62 B 0.108 0.128 2.75 3.25 C 0.002 0.008 0.051 0.203 D 0.006 0.012 0.152 0.305 E 0.030 0.060 0.76 1.52 F 0.305 0.320 7.75 8.13 G 0.260 0.280 6.60 7.11 H 0.220 0.245 5.59 6.22 NOTE Suggested Solder Pad Layout 4.40mm 3.30mm 2.50mm XXXX = Marking code YYWW = Date Code Rev.4-1-11082023 1/5 MCCSEMI.COM 5.0SMLJ5.0AHE3 THRU 5.0SMLJ85CAHE3 Thermal Characteristics Parameter Operating Junction Temperature Range St

Overview

5.0SMLJ5.0AHE3 THRU 5.0SMLJ85CAHE3 E480232.

Key Features

  • AEC-Q101 Qualified.
  • For Surface Mount.
