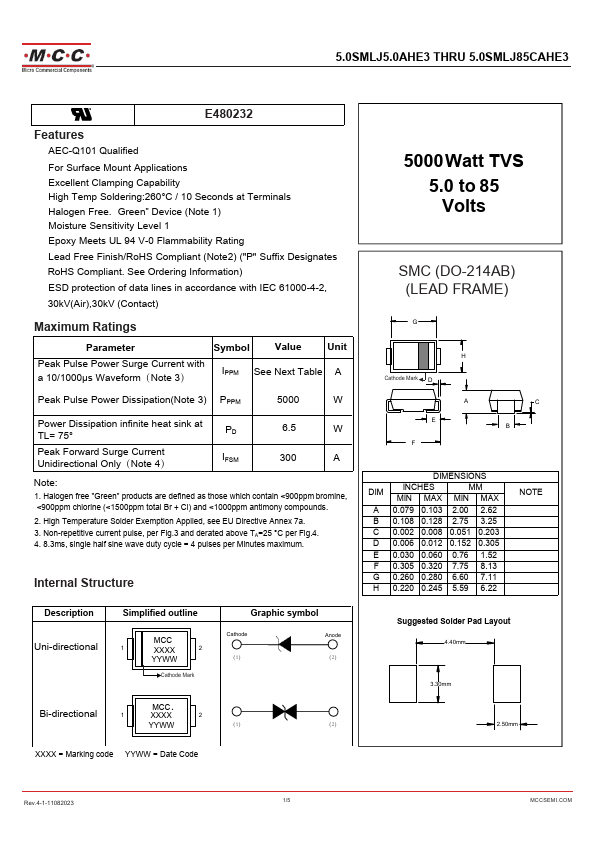

This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | 5.0SMLJ78AHE3 |
|---|---|
| Datasheet | 5.0SMLJ78AHE3 5.0SMLJ5.0AHE3 Datasheet (PDF) |
| File Size | 1.02 MB |
| Manufacturer | Micro Commercial Components |
| Description | 5000 Watt TVS |
|
|

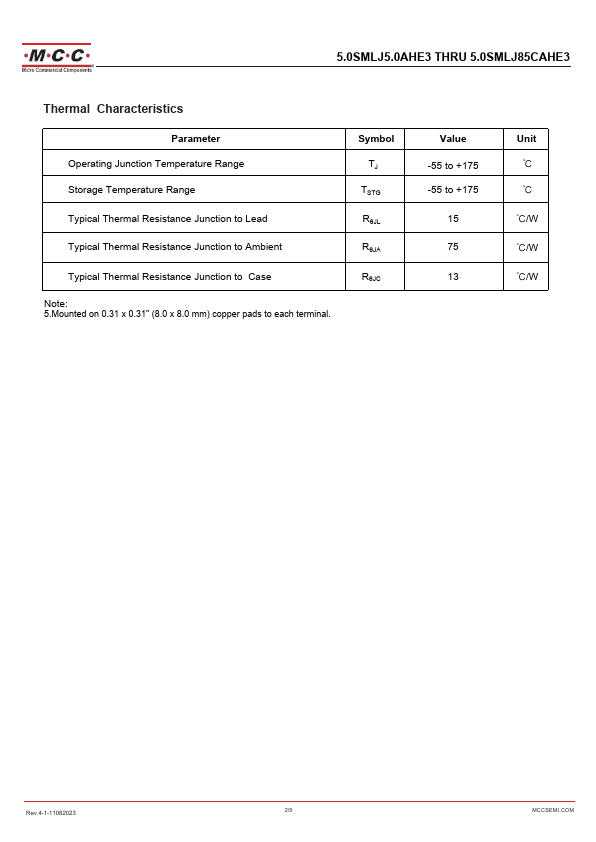

5.0SMLJ5.0AHE3 THRU 5.0SMLJ85CAHE3 Thermal Characteristics Parameter Operating Junction Temperature Range Storage Temperature Range Typical Junction to Lead Typical Junction to Ambient Typical Junction to Case Note: 5.Mounted on 0.31 x 0.31" (8.0 x 8.0 mm) copper pads to each terminal.
