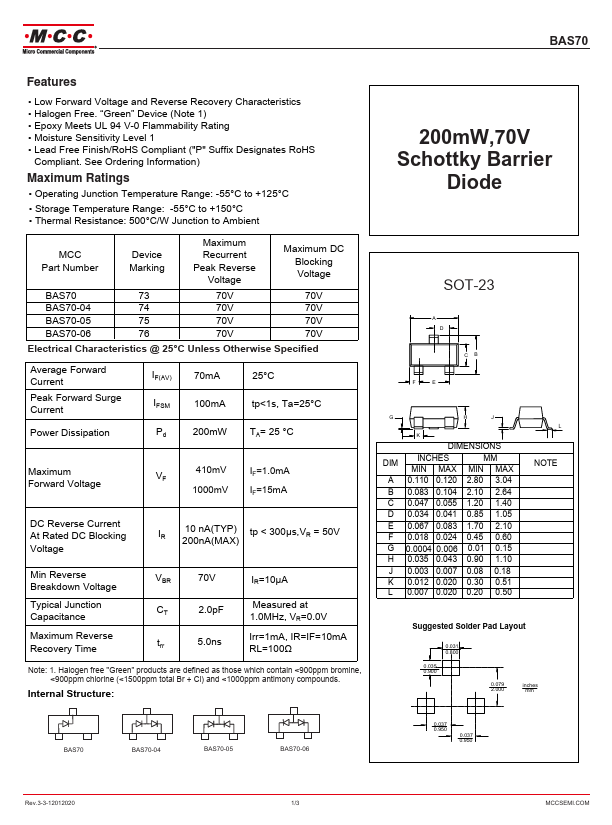

BAS70-04
Features
- Low Forward Voltage and Reverse Recovery Characteristics
- Halogen Free. “Green” Device (Note 1)
- Epoxy Meets UL 94 V-0 Flammability Rating
- Moisture Sensitivity Level 1

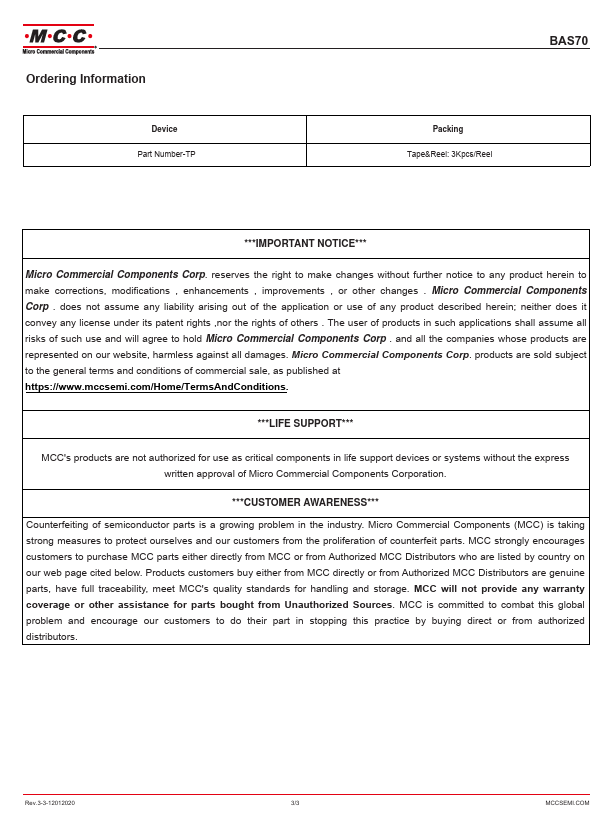

- Lead Free Finish/Ro HS pliant ("P" Suffix Designates Ro HS pliant. See Ordering Information)
Maximum Ratings
- Operating Junction Temperature Range: -55°C to +125°C
- Storage Temperature Range: -55°C to +150°C
- Thermal Resistance: 500°C/W Junction to Ambient
MCC Part Number
Device Marking
Maximum Recurrent Peak Reverse
Voltage
Maximum DC Blocking Voltage
BAS70
70V
70V
70V
70V
BAS70-05
70V
70V
BAS70-06
70V
70V
Electrical Characteristics @ 25°C Unless Otherwise Specified
Average Forward Current
Peak Forward Surge Current
IF(AV) IFSM
70m A 100m A
25°C tp<1s, Ta=25°C
Power Dissipation
Pd
200m W TA= 25 °C
Maximum Forward...
