BAS70-05 Datasheet 200mW 70V Schottky Barrier Diode

Manufacturer: Micro Commercial Components

Download the BAS70-05 datasheet PDF. This datasheet also includes the BAS70 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

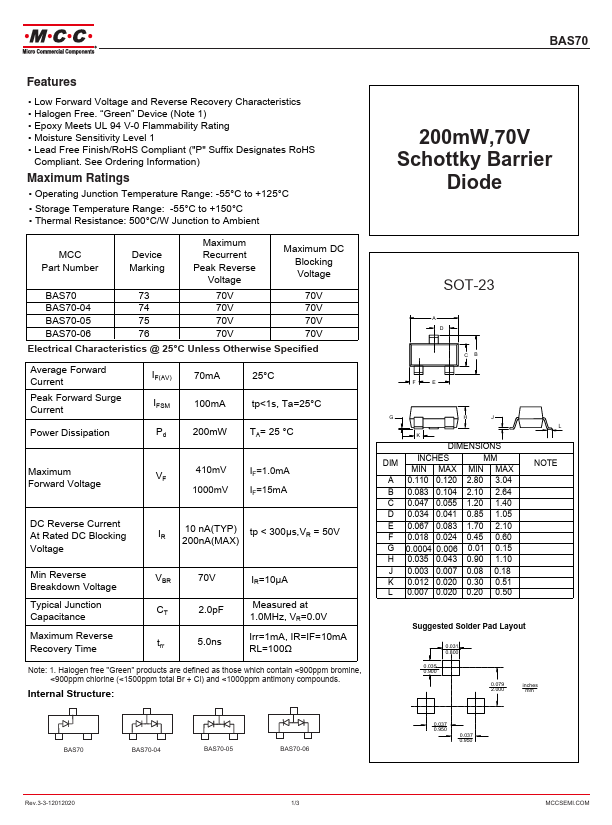

BAS70-05 200mw 70v schottky barrier diode by Micro Commercial Components - Datasheet Preview — Note: The manufacturer provides a single datasheet file (BAS70-MCC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	BAS70-05
Manufacturer	Micro Commercial Components
File Size	744.79 KB
Description	200mW 70V Schottky Barrier Diode
Datasheet	BAS70-05 Datasheet

Overview

BAS70.

Key Features

Low Forward Voltage and Reverse Recovery Characteristics.
Halogen Free. “Green” Device (Note 1).
Epoxy Meets UL 94 V-0 Flammability Rating.
Moisture Sensitivity Level 1.
Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings.
Operating Junction Temperature Range: -55°C to +125°C.
Storage Temperature Range: -55°C to +150°C.
Thermal Resistance: 500°C/W Junction to Amb.
