BAS70 Datasheet 200mW 70V Schottky Barrier Diode

Manufacturer: Micro Commercial Components

📥 Download Datasheet

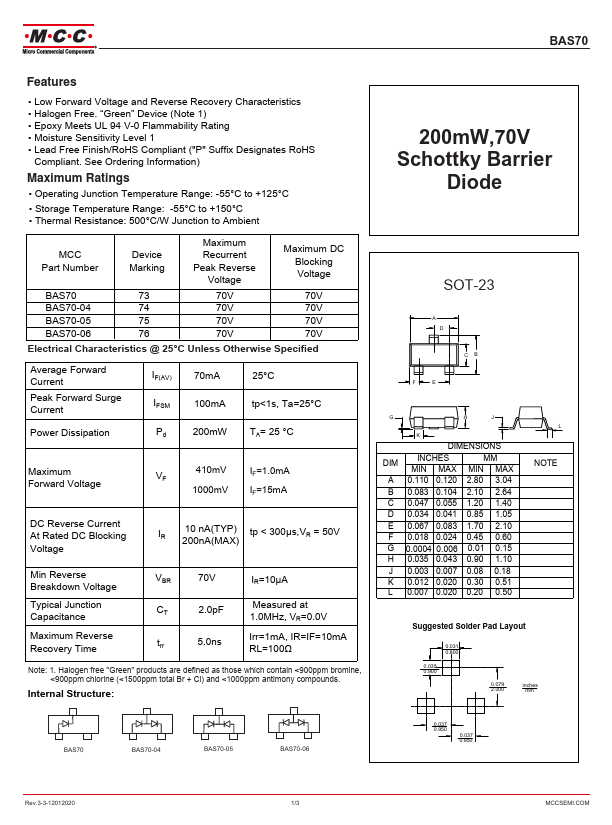

BAS70 200mw 70v schottky barrier diode by Micro Commercial Components - Datasheet Preview

Datasheet Details

Part number	BAS70
Manufacturer	Micro Commercial Components
File Size	744.79 KB
Description	200mW 70V Schottky Barrier Diode
Datasheet	BAS70 Datasheet

Overview

BAS70.

Key Features

Low Forward Voltage and Reverse Recovery Characteristics.
Halogen Free. “Green” Device (Note 1).
Epoxy Meets UL 94 V-0 Flammability Rating.
Moisture Sensitivity Level 1.
Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings.
Operating Junction Temperature Range: -55°C to +125°C.
Storage Temperature Range: -55°C to +150°C.
Thermal Resistance: 500°C/W Junction to Amb.
