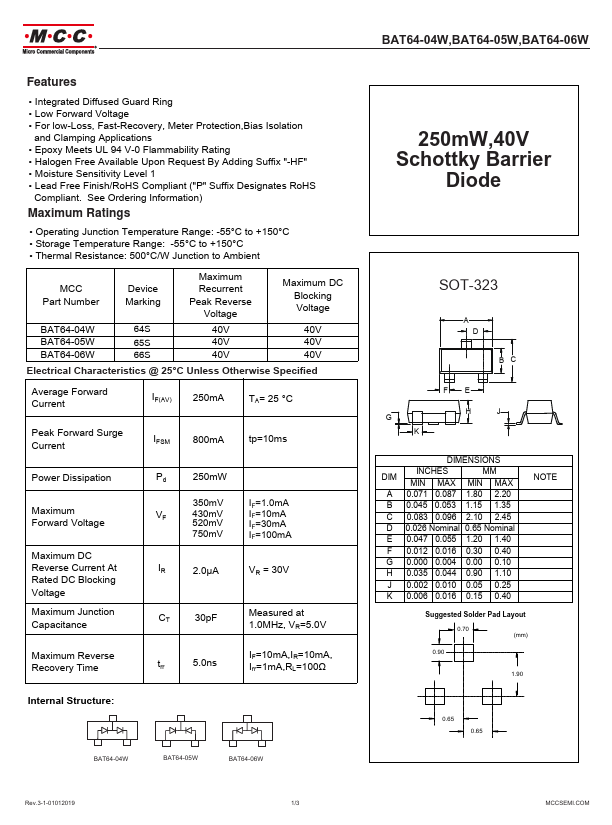

BAT64-05W
BAT64-05W is 250mW 40V Schottky Barrier Diode manufactured by Micro Commercial Components.
- Part of the BAT64-04W comparator family.
- Part of the BAT64-04W comparator family.
Features
- Integrated Diffused Guard Ring
- Low Forward Voltage
- For low-Loss, Fast-Recovery, Meter Protection,Bias Isolation and Clamping Applications
- Epoxy Meets UL 94 V-0 Flammability Rating
- Halogen Free Available Upon Request By Adding Suffix "-HF"
- Moisture Sensitivity Level 1
- Lead Free Finish/RoHS pliant ("P" Suffix Designates RoHS pliant. See Ordering Information)
Maximum Ratings
- Operating Junction Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Thermal Resistance: 500°C/W Junction to Ambient
MCC Part Number
Device Marking
Maximum Recurrent Peak Reverse
Voltage
Maximum DC Blocking Voltage
BAT64-04W
64S
40V
40V
65S...
