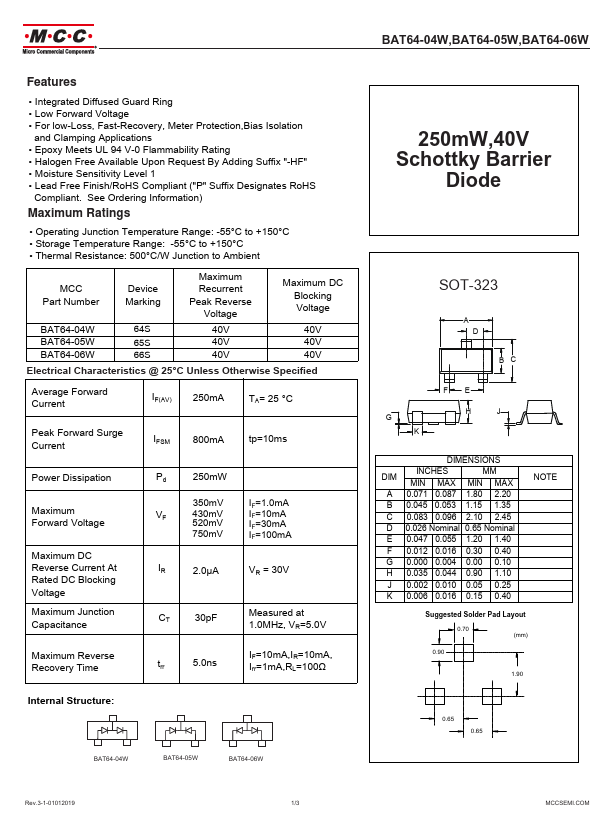

Micro Commercial Components BAT64-06W
250mW 40V Schottky Barrier Diode
| Part No. | BAT64-06W |
|---|---|
| Datasheet | BAT64-06W Download |
| Manufacturer |  Micro Commercial Components |
| Description | 250mW 40V Schottky Barrier Diode |
| Buy | Stock & Price |
FEATURES
● Integrated Diffused Guard Ring● Low Forward Voltage
● For low-Loss, Fast-Recovery, Meter Protection,Bias Isolation and Clamping
APPLICATIONS
● Epoxy Meets UL 94 V-0 Flammability Rating● Halogen Free Available Upon Request By Adding Suffix "-HF"
● Moisture Sensitivity Level 1

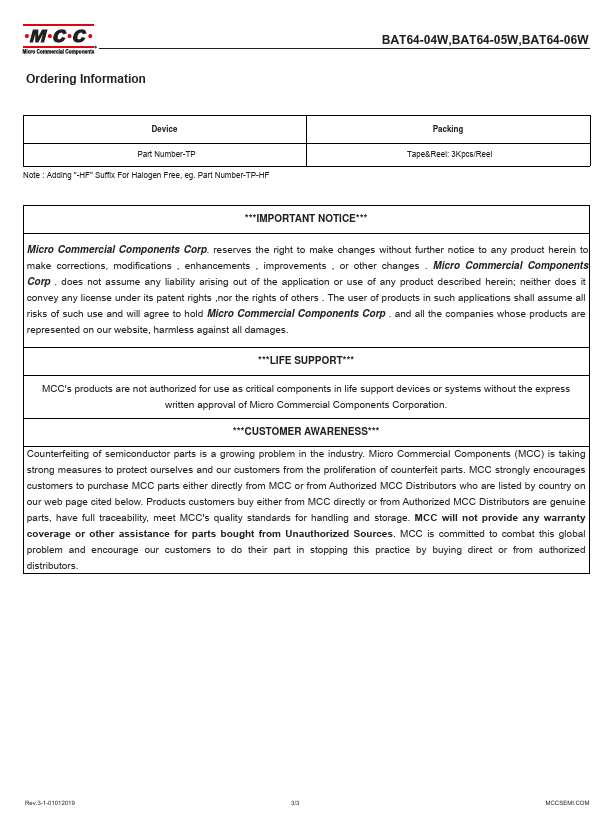

● Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information)
MAXIMUM RATINGS
● Operating Junction Temperature Range: -55°C to +150°C● Storage Temperature Range: -55°C to +150°C
● Thermal Resistance: 500°C/W Junction to Ambient MCC Part Number Device Marking Maximum Recurrent Peak Reverse Voltage Maximum DC Blocking Voltage BAT64-04W 64S 40V 40V BAT64-05W 65S 40V 40V BAT64-06W 66S 40V 40V
ELECTRICAL CHARACTERISTICS
@ 25°C Unless Otherwise Specified Average Forward Current IF(AV) 250mA TA= 25 °C Peak Forward Surge Current IFSM 800mA tp=10ms Power Dissipation Maximum Forward Voltage Maximum DC Reverse Current At Rated DC Blocking Voltage Maximum Junction Capacitance Maximum Reverse Recovery Time Pd 250mW 350mV IF=1.0mA VF 430mV 520mV IF=10mA IF=30mA 750mV IF=100mA IR 2.0μA VR = 30V CT 30pF trr 5.0ns Measured at 1.
