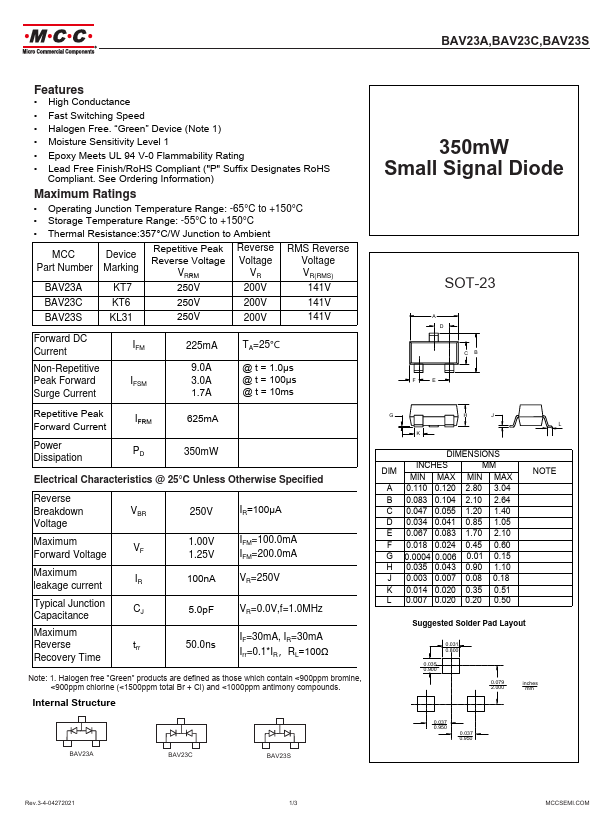

BAV23A - Small Signal Diode

Key Features

  • Fast Switching Speed.
  • Operating and storage junction temperature range -65OC To 150OC.
  • Epoxy meets UL 94 V-0 flammability rating.
  • Moisture Sensitivity Level 1.
  • Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant. See ordering information) Maximum Ratings Symbol Parameter VBR Reverse Breakdown Vlotage @ IR=100uA VR Continuous Reverse Voltage VR(RMS) RMS Reverse Voltage IFM RqJA Pd IFSM Forward DC Current at Tamb=25OC Thermal.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BAV23A Dual high-voltage switching diodes nexperia
BAV23A HIGH CONDUCTANCE ULTRA FAST DIODE UTC
BAV23A Surface mount switching diode LGE
BAV23A SWITCHING DIODE JCET
BAV23A SURFACE MOUNT HIGH VOLTAGE DUAL SWITCHING DIODE Diodes

Other Datasheets by Micro Commercial Components

Part Number Description
BAV23 Small Signal Diode
BAV23C Small Signal Diode
BAV23S Small Signal Diode
BAV20 Small Signal Diodes
BAV20WS 250mW Small Signal Diodes

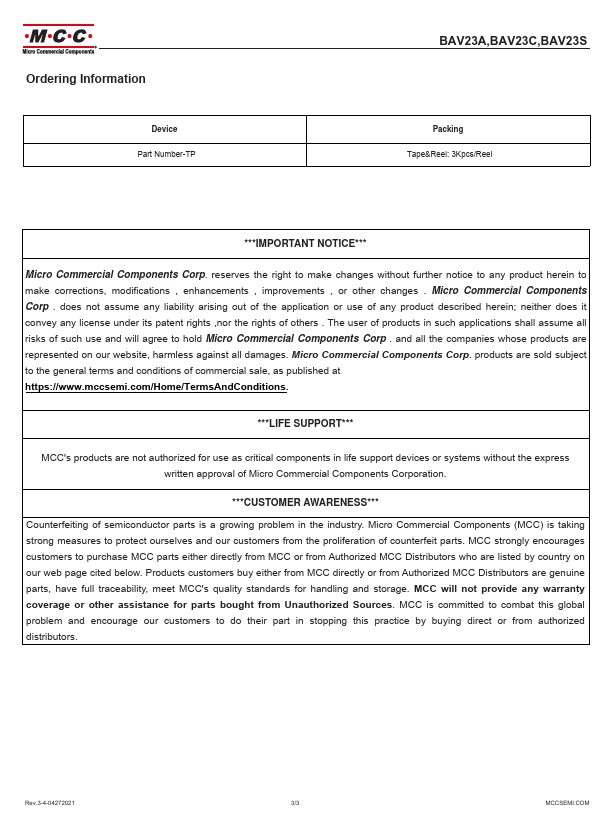

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
MCC TM Micro Commercial Components   omponents 20736 Marilla Street Chatsworth    !"# $ %    !"# BAV23/A/C/S Features • Fast Switching Speed • Operating and storage junction temperature range -65OC To 150OC • Epoxy meets UL 94 V-0 flammability rating • Moisture Sensitivity Level 1 • Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant. See ordering information) Maximum Ratings Symbol Parameter VBR Reverse Breakdown Vlotage @ IR=100uA VR Continuous Reverse Voltage VR(RMS) RMS Reverse Voltage IFM RqJA Pd IFSM Forward DC Current at Tamb=25OC Thermal Resistance Junction to Ambient Air Power Dissipation Non-Repetitive Peak Forward Surge Current @ t = 1.0ms @ t = 100ms Rating 250 200 141 225 357 350 9.0 3.
