BC846S - Dual NPN Small Signal Transistor

Key Features

  • Halogen Free. “Green” Device (Note 1).
  • Moisture Sensitivity Level 1.
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) %&6%&%6 'XDO131 6PDOO6LJQDO 7UDQVLVWRUV Maximum Ratings @ 25°C Unless Otherwise Specified Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Power Dissipation Symbol VCBO VCEO VEBO IC PD.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BC846S SMD General Purpose NPN Transistors Diotec
BC846S NPN Silicon AF Transistor Siemens Semiconductor Group
BC846S NPN Silicon AF Transistor Infineon Technologies AG
BC846S DUAL TRANSISTOR JCET
BC846S Plastic-Encapsulate Multi-Chip NPN+NPN Transistor SeCoS

Other Datasheets by Micro Commercial Components

Part Number Description
BC846A NPN Transistors
BC846AW NPN General Purpose Transistors
BC846B NPN Transistors
BC846BS Dual NPN Small Signal Transistor
BC846BW NPN General Purpose Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

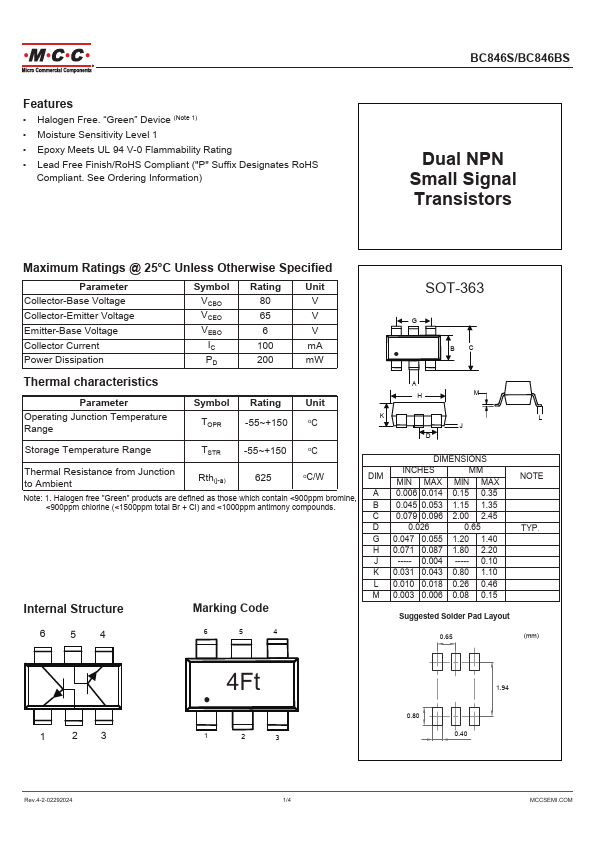

Features • Halogen Free. “Green” Device (Note 1) • Moisture Sensitivity Level 1 • Epoxy Meets UL 94 V-0 Flammability Rating • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) %&6%&%6 'XDO131 6PDOO6LJQDO 7UDQVLVWRUV Maximum Ratings @ 25°C Unless Otherwise Specified Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Power Dissipation Symbol VCBO VCEO VEBO IC PD Rating 80 65 6 100 200 Unit V V V mA mW SOT-363 G • BC 7KHUPDOFKDUDFWHULVWLFV 3DUDPHWHU Operating Junction Temperature Range 6PERO TOPR 5DWLQJ -55~+150 8QLW oC Storage Temperature Range TSTR -55~+150 oC Thermal Resistance from Junction to Ambient Rth(j-a) 625 oC/W Note: 1.
