Micro Commercial Components BC849C
NPN Transistors
BC849C Specifications
- Package : SOT-23
- Mount Type : Surface Mount
- Polarity : NPN
- Max Collector Current : 100mA
- Frequency : 300MHz
- Terminals : 3
- Collector Base Voltage : 30V
- Emitter Base Voltage : 5V
- Collector Emitter Saturation Voltage : 600mV
- Max Power Dissipation : 250mW
- Max Operating Temp : 150°C
- Min Operating Temp : -55°C
Source:
Octopart
| Part No. | BC849C |
|---|---|
| Datasheet | BC849C Download |
| Manufacturer |  Micro Commercial Components |
| Description | NPN Transistors |
| Buy | Stock & Price |

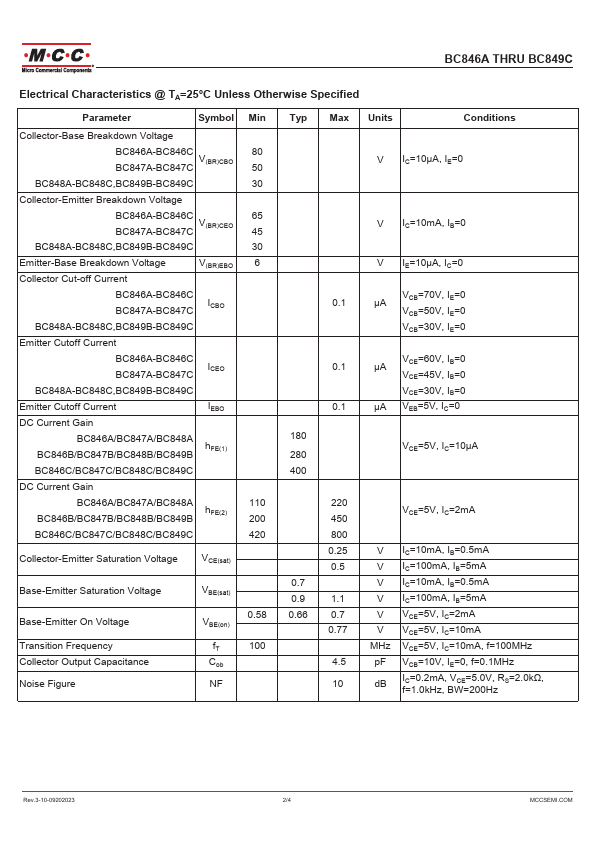

ELECTRICAL CHARACTERISTICS
@ TA=25°C Unless Otherwise Specified Parameter Symbol Min Collector-Base Breakdown Voltage BC846A-BC846C 80 BC847A-BC847C V(BR)CBO 50 BC848A-BC848C,BC849B-BC849C 30 Collector-Emitter Breakdown Voltage BC846A-BC846C 65 BC847A-BC847C V(BR)CEO 45 BC848A-BC848C,BC849B-BC849C 30 Emitter-Base Breakdown Voltage Collector Cut-off Current V(BR)EBO 6 BC846A-BC846C BC847A-BC847C ICBO BC848A-BC848C,BC849B-BC849C Emitter Cutoff Current BC846A-BC846C BC847A-BC847C ICEO BC848A-BC848C,BC849B-BC849C Emitter Cutoff Current IEBO DC Current Gain BC846A/BC847A/BC848A BC846B/BC847B/BC848B/BC849B hFE(1) BC846C/BC847C/BC848C/BC849C DC Current Gain BC846A/BC847A/BC848A 110 BC846B/BC847B/BC848B/BC849B hFE(2) 200 BC846C/BC847C/BC848C/BC849C 420 Collector-Emitter Saturation Voltage VCE(sat) Base-Emitter Saturation Voltage Base-Emitter On Voltage Transition Frequency Collector Output Capacitance 1RLVH )LJXUH VBE(sat) VBE(on) fT Cob 1) 0.58 100 Typ 180 280 400 0.7 0.9 0.66 Max Units Condi...
