BCX56-10 - NPN Plastic-Encapsulate Transistors

Download the BCX56-10 datasheet PDF. This datasheet also covers the BCX56 variant, as both devices belong to the same npn plastic-encapsulate transistors family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • Halogen Free. “Green” Device (Note 1).
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) NPN Plastic Encapsulate Transistors Maximum Ratings @ 25°C Unless Otherwise Specified.
  • Operating Junction Temperature Range: -55℃ to +150℃.
  • StorageTemperature Range: -55℃ to +150℃.
  • Thermal Resistance: 250℃/W Junction to Ambient (Note1) 627 Parameter Collecto.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BCX56-MCC.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
BCX56-10 NPN Silicon AF Transistors Infineon
BCX56-16 NPN Silicon AF Transistors Infineon
BCX56 NPN Silicon AF Transistor Multicomp
BCX56 Silicon NPN transistor BLUE ROCKET ELECTRONICS
BCX56 NPN medium power transistors NXP

Other Datasheets by Micro Commercial Components

Part Number Description
BCX56-16 NPN Plastic-Encapsulate Transistors
BCX56 NPN Plastic-Encapsulate Transistors
BCX51 PNP Plastic-Encapsulate Transistors
BCX51-10 PNP Plastic-Encapsulate Transistors
BCX51-16 PNP Plastic-Encapsulate Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

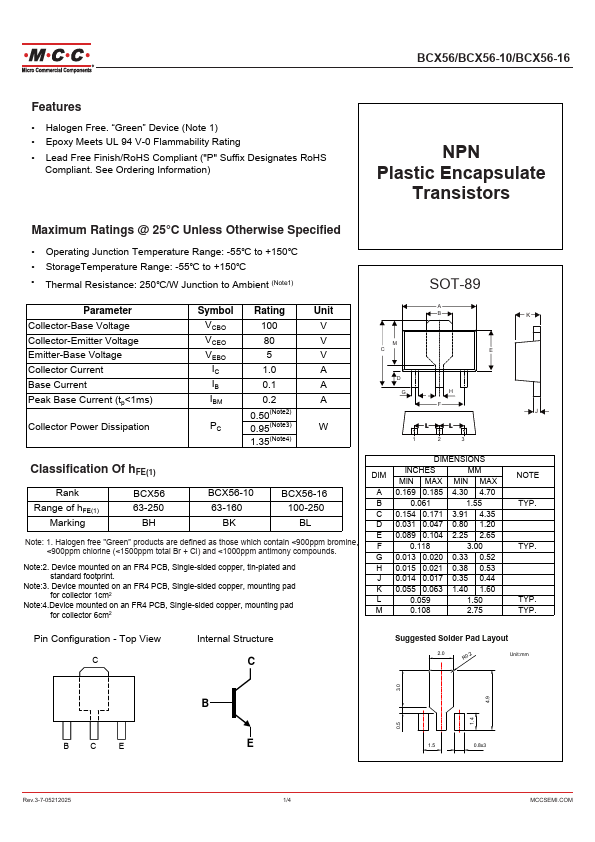

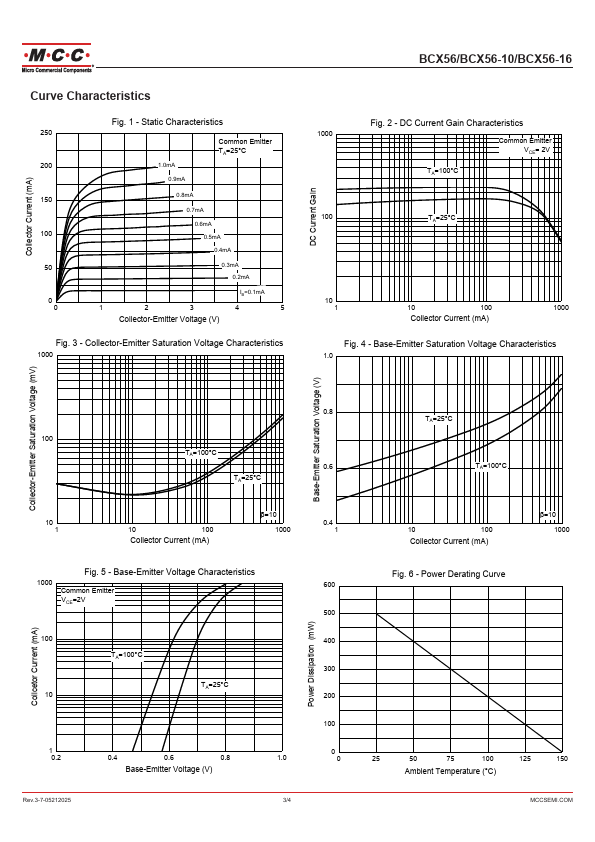

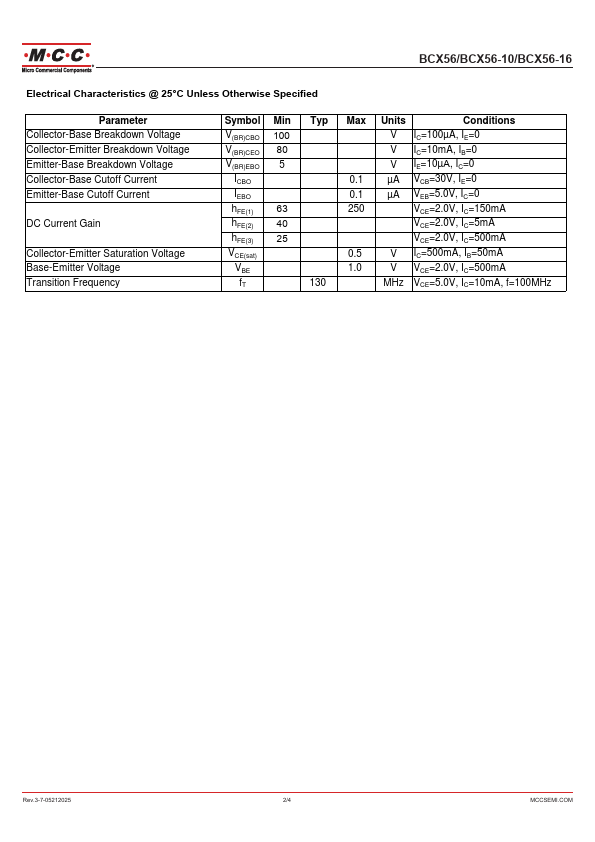

BCX56/BCX56-10/BCX56-16 Features • Halogen Free. “Green” Device (Note 1) • Epoxy Meets UL 94 V-0 Flammability Rating • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) NPN Plastic Encapsulate Transistors Maximum Ratings @ 25°C Unless Otherwise Specified • Operating Junction Temperature Range: -55℃ to +150℃ • StorageTemperature Range: -55℃ to +150℃ • Thermal Resistance: 250℃/W Junction to Ambient (Note1) 627 Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Base Current Peak Base Current (tp<1ms) Collector Power Dissipation Symbol VCBO VCEO VEBO IC IB IBM PC Rating 100 80 5 1.0 0.1 0.2 0.50(Note2) 0.95(Note3) 1.
