BZX584C13

Manufacturer: Micro Commercial Components

BZX584C13 datasheet by Micro Commercial Components.

This datasheet includes multiple variants, all published together in a single manufacturer document.

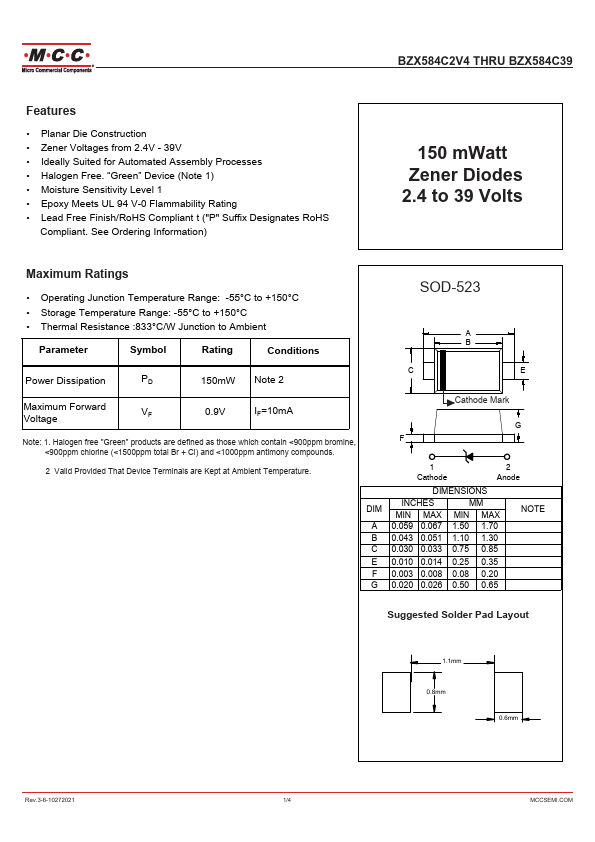

BZX584C13 datasheet preview

BZX584C13 Datasheet Details

Part number	BZX584C13
Datasheet	BZX584C13 BZX584C2V4 Datasheet (PDF)
File Size	0.96 MB
Manufacturer	Micro Commercial Components
Description	150 mWatt Zener Diodes

BZX584C13 Overview

BZX584C2V4 THRU BZX584C39.

BZX584C13 Key Features

Planar Die Construction
Zener Voltages from 2.4V
Ideally Suited for Automated Assembly Processes
Halogen Free. “Green” Device (Note 1)
Moisture Sensitivity Level 1
Epoxy Meets UL 94 V-0 Flammability Rating
Lead Free Finish/RoHS pliant t ("P" Suffix Designates RoHS
Operating Junction Temperature Range: -55°C to +150°C
Storage Temperature Range: -55°C to +150°C
Thermal Resistance :833°C/W Junction to Ambient
