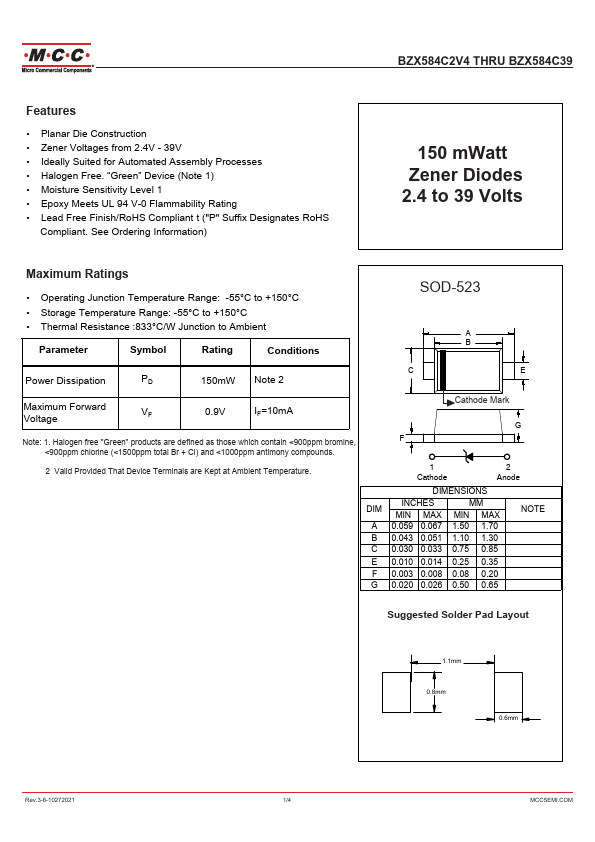

BZX584C20 Description
BZX584C2V4 THRU BZX584C39.
BZX584C20 Key Features
- Planar Die Construction
- Zener Voltages from 2.4V
- Ideally Suited for Automated Assembly Processes
- Halogen Free. “Green” Device (Note 1)
- Moisture Sensitivity Level 1
- Epoxy Meets UL 94 V-0 Flammability Rating
- Lead Free Finish/RoHS pliant t ("P" Suffix Designates RoHS
- Operating Junction Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Thermal Resistance :833°C/W Junction to Ambient
