BZX584C2V4 - 150 mWatt Zener Diodes

Key Features

  • Planar Die Construction.
  • Zener Voltages from 2.4V - 39V.
  • Ideally Suited for Automated Assembly Processes.
  • Halogen Free. “Green” Device (Note 1).
  • Moisture Sensitivity Level 1.
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Lead Free Finish/RoHS Compliant t ("P" Suffix Designates RoHS Compliant. See Ordering Information) 150 mWatt Zener Diodes 2.4 to 39 Volts Maximum Ratings.
  • Operating Junction Temperature Range: -55°C to +150.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BZX584C2V4 200mW SURFACE MOUNT ZENER DIODE WON-TOP
BZX584C2V4 ZENER DIODE JCET
BZX584C2V4 SURFACE MOUNT ZENER DIODE LITE-ON
BZX584C2V4 Small Signal Zener Diodes Vishay
BZX584C2V4 SURFACE MOUNT SILICON ZENER DIODES Pan Jit International

Other Datasheets by Micro Commercial Components

Part Number Description
BZX584C2V7 150 mWatt Zener Diodes
BZX584C20 150 mWatt Zener Diodes
BZX584C22 150 mWatt Zener Diodes
BZX584C24 150 mWatt Zener Diodes
BZX584C27 150 mWatt Zener Diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

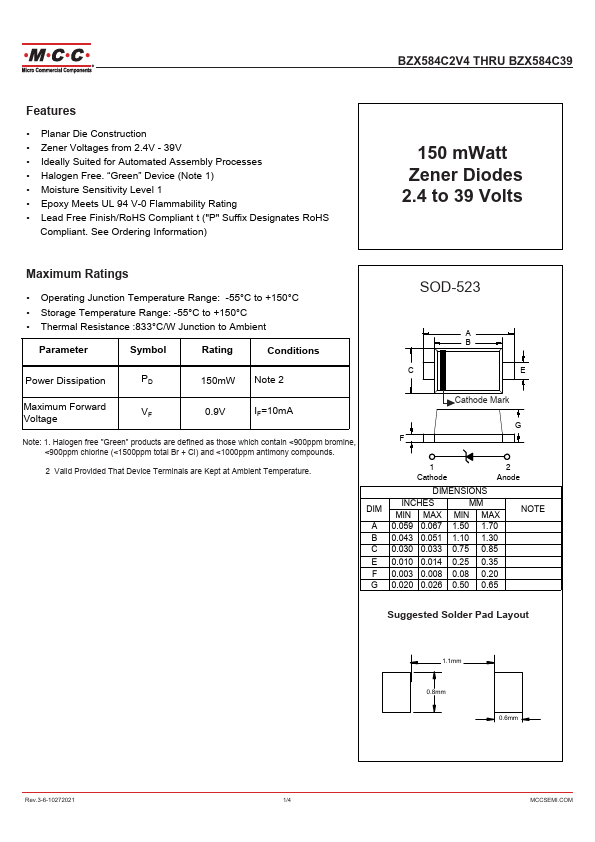

BZX584C2V4 THRU BZX584C39 Features • Planar Die Construction • Zener Voltages from 2.4V - 39V • Ideally Suited for Automated Assembly Processes • Halogen Free. “Green” Device (Note 1) • Moisture Sensitivity Level 1 • Epoxy Meets UL 94 V-0 Flammability Rating • Lead Free Finish/RoHS Compliant t ("P" Suffix Designates RoHS Compliant. See Ordering Information) 150 mWatt Zener Diodes 2.4 to 39 Volts Maximum Ratings • Operating Junction Temperature Range: -55°C to +150°C • Storage Temperature Range: -55°C to +150°C • Thermal Resistance :833°C/W Junction to Ambient Parameter Symbol Rating Conditions SOD-523 A B Power Dissipation PD 150mW Note 2 C E Maximum Forward Voltage VF 0.9V IF=10mA Cathode Mark G Note: 1.
