BZX584C2V7 - 150 mWatt Zener Diodes

Download the BZX584C2V7 datasheet PDF. This datasheet also covers the BZX584C2V4 variant, as both devices belong to the same 150 mwatt zener diodes family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • Planar Die Construction.
  • Zener Voltages from 2.4V - 39V.
  • Ideally Suited for Automated Assembly Processes.
  • Halogen Free. “Green” Device (Note 1).
  • Moisture Sensitivity Level 1.
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Lead Free Finish/RoHS Compliant t ("P" Suffix Designates RoHS Compliant. See Ordering Information) 150 mWatt Zener Diodes 2.4 to 39 Volts Maximum Ratings.
  • Operating Junction Temperature Range: -55°C to +150.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BZX584C2V4-MCC.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
BZX584C2V7 200mW SURFACE MOUNT ZENER DIODE WON-TOP
BZX584C2V7 ZENER DIODE JCET
BZX584C2V7 SURFACE MOUNT ZENER DIODE LITE-ON
BZX584C2V7 SURFACE MOUNT SILICON ZENER DIODES Pan Jit International
BZX584C2V7 ZENER DIODE Rectron

Other Datasheets by Micro Commercial Components

Part Number Description
BZX584C2V4 150 mWatt Zener Diodes
BZX584C20 150 mWatt Zener Diodes
BZX584C22 150 mWatt Zener Diodes
BZX584C24 150 mWatt Zener Diodes
BZX584C27 150 mWatt Zener Diodes

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

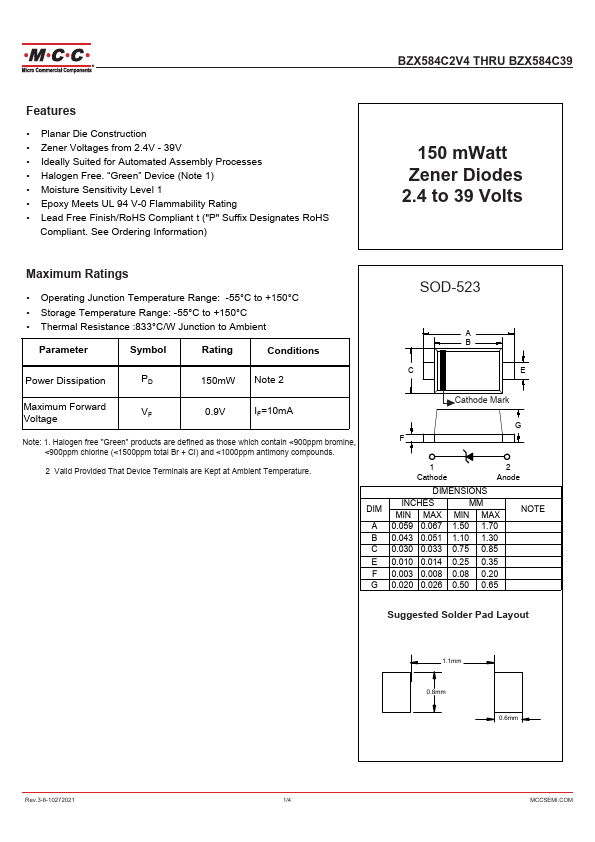

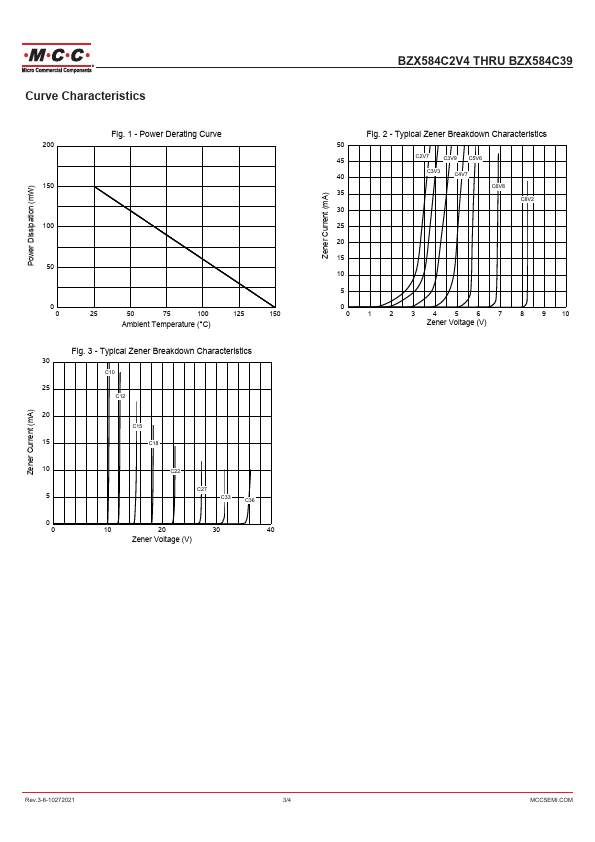

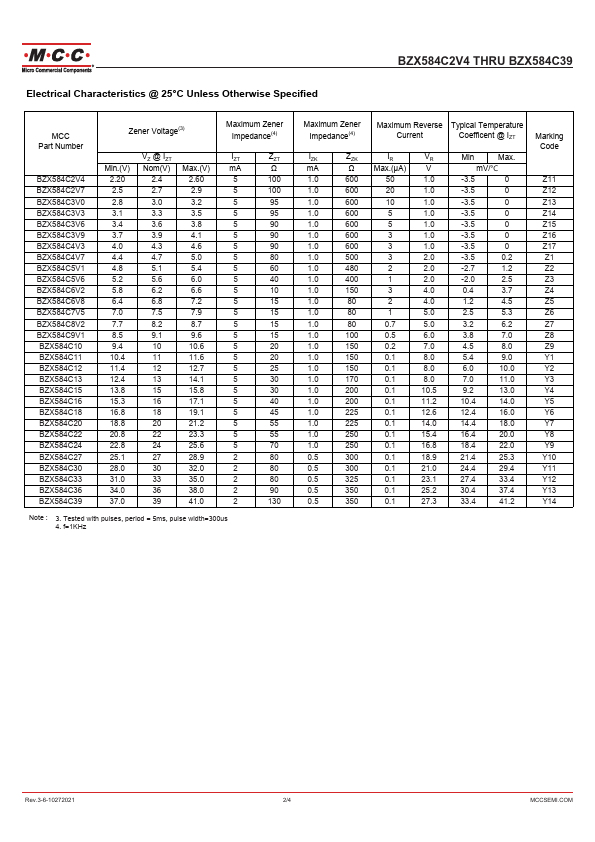

BZX584C2V4 THRU BZX584C39 Features • Planar Die Construction • Zener Voltages from 2.4V - 39V • Ideally Suited for Automated Assembly Processes • Halogen Free. “Green” Device (Note 1) • Moisture Sensitivity Level 1 • Epoxy Meets UL 94 V-0 Flammability Rating • Lead Free Finish/RoHS Compliant t ("P" Suffix Designates RoHS Compliant. See Ordering Information) 150 mWatt Zener Diodes 2.4 to 39 Volts Maximum Ratings • Operating Junction Temperature Range: -55°C to +150°C • Storage Temperature Range: -55°C to +150°C • Thermal Resistance :833°C/W Junction to Ambient Parameter Symbol Rating Conditions SOD-523 A B Power Dissipation PD 150mW Note 2 C E Maximum Forward Voltage VF 0.9V IF=10mA Cathode Mark G Note: 1.
