BZX584C3V0 Datasheet 150 Mwatt Zener Diodes

Manufacturer: Micro Commercial Components

Overview: BZX584C2V4 THRU BZX584C39.

This datasheet includes multiple variants, all published together in a single manufacturer document.

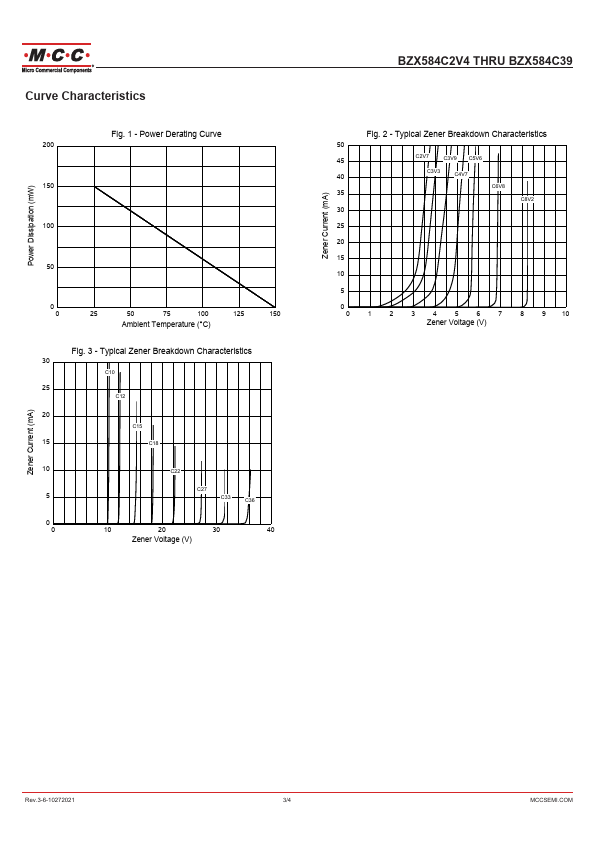

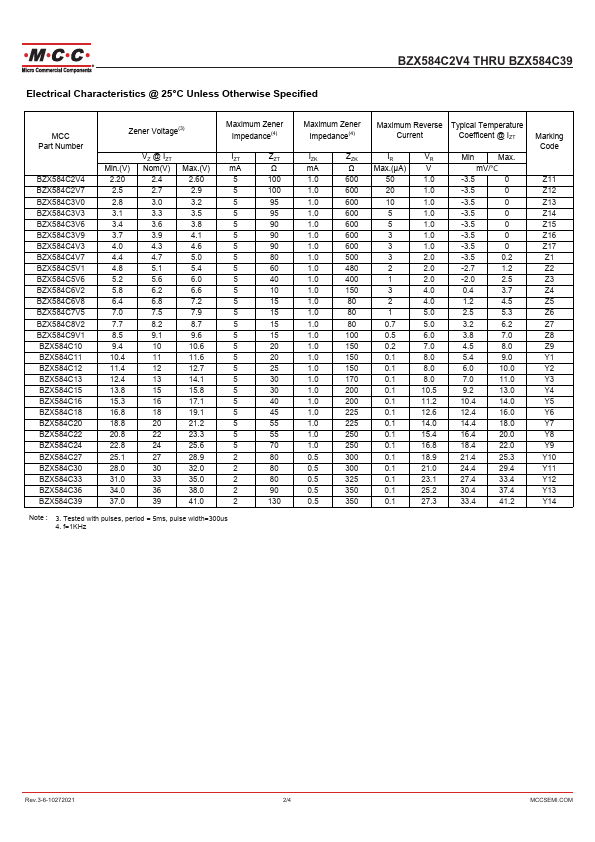

BZX584C3V0 datasheet preview

Datasheet Details

Part number	BZX584C3V0
Manufacturer	Micro Commercial Components
File Size	0.96 MB
Description	150 mWatt Zener Diodes
Datasheet	BZX584C3V0 BZX584C2V4 Datasheet (PDF)

Key Features

Planar Die Construction.
Zener Voltages from 2.4V - 39V.
Ideally Suited for Automated Assembly Processes.
Halogen Free. “Green” Device (Note 1).
Moisture Sensitivity Level 1.
Epoxy Meets UL 94 V-0 Flammability Rating.
Lead Free Finish/RoHS Compliant t ("P" Suffix Designates RoHS Compliant. See Ordering Information) 150 mWatt Zener Diodes 2.4 to 39 Volts Maximum Ratings.
Operating Junction Temperature Range: -55°C to +150.
