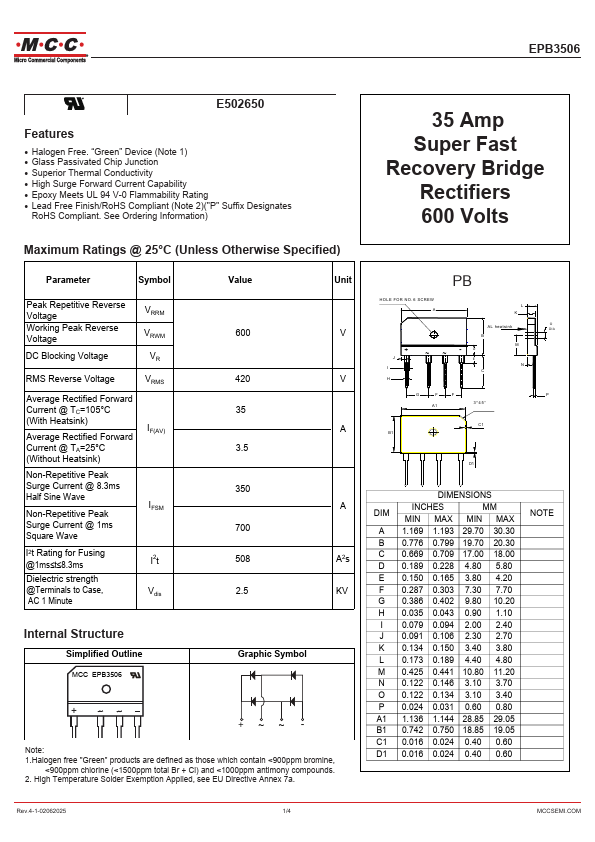

EPB3506
Features
- Halogen Free. “Green” Device (Note 1)
- Glass Passivated Chip Junction
- Superior Thermal Conductivity
- High Surge Forward Current Capability
- Epoxy Meets UL 94 V-0 Flammability Rating
- Lead Free Finish/Ro HS pliant (Note 2)("P" Suffix Designates
Ro HS pliant. See Ordering Information)
Maximum Ratings @ 25°C (Unless Otherwise Specified)
Parameter
Symbol
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage
DC Blocking Voltage
VRRM VRWM
RMS Reverse Voltage
VRMS
Average Rectified Forward Current @ TC=105°C (With Heatsink)
Average Rectified Forward Current @ TA=25°C (Without Heatsink)
Non-Repetitive Peak Surge Current @ 8.3ms Half Sine Wave
Non-Repetitive Peak Surge Current @ 1ms Square Wave
I2t Rating for Fusing @1ms≤t≤8.3ms
Dielectric strength @Terminals to Case, AC 1 Minute
IF(AV)
IFSM I2t Vdis
Value
420 35 3.5 350 700 508 2.5
Unit V V A
A A2s KV
Internal Structure
Simplified Outline
MCC EPB3506
Graphic Symbol
+ +~~
- Note: 1.Halogen free...
