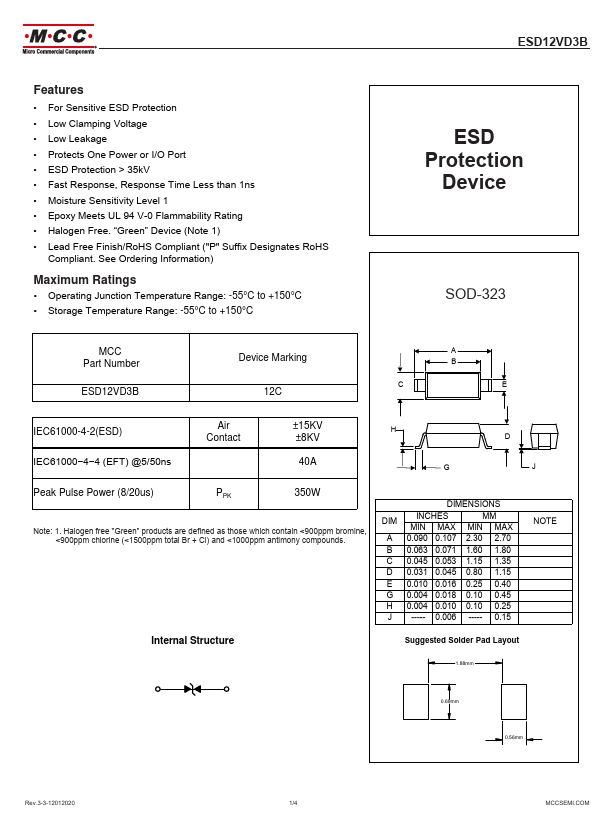

ESD12VD3B
Features
- For Sensitive ESD Protection
- Low Clamping Voltage
- Low Leakage
- Protects One Power or I/O Port
- ESD Protection > 35k V
- Fast Response, Response Time Less than 1ns
- Moisture Sensitivity Level 1
- Epoxy Meets UL 94 V-0 Flammability Rating
- Halogen Free. “Green” Device (Note 1)
- Lead Free Finish/Ro HS pliant ("P" Suffix Designates Ro HS pliant. See Ordering Information)
Maximum Ratings
- Operating Junction Temperature Range: -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
ESD Protection
Device
SOD-323
MCC Part Number
Device Marking 12C
IEC61000-4-2(ESD)
Air
±15KV
Contact
±8KV
IEC61000- 4- 4 (EFT) @5/50ns
40A
Peak Pulse Power (8/20us)
350W
Note: 1. Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony pounds.
DIMENSIONS
INCHES MIN MAX
MM MIN MAX
A 0.090 0.107 2.30...
