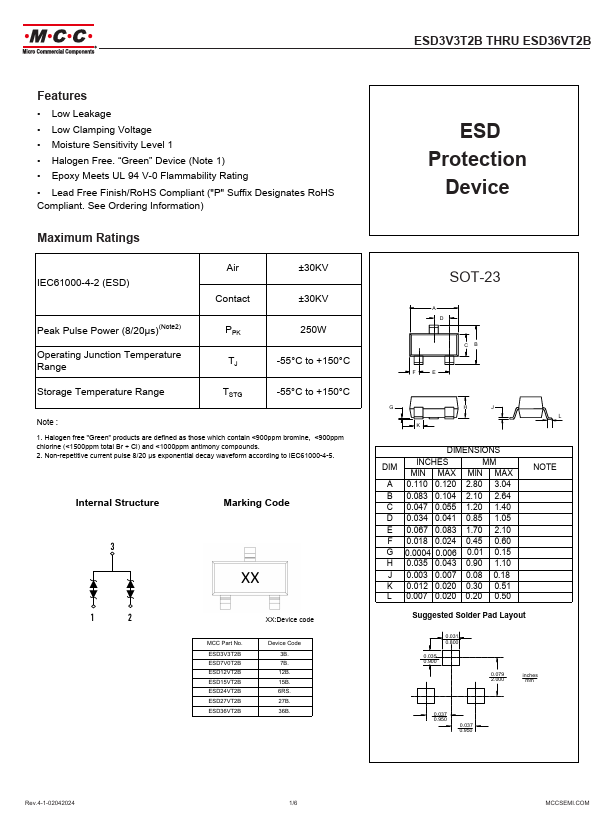

ESD7V0T2B
Features
- Low Leakage
- Low Clamping Voltage
- Moisture Sensitivity Level 1
- Halogen Free. “Green” Device (Note 1)
- Epoxy Meets UL 94 V-0 Flammability Rating
- Lead Free Finish/Ro HS pliant ("P" Suffix Designates Ro HS pliant. See Ordering Information)
Maximum Ratings
IEC61000-4-2 (ESD)
Peak Pulse Power (8/20μs)(Note2) Operating Junction Temperature Range Storage Temperature Range
Air Contact
PPK TJ TSTG
±30KV ±30KV 250W -55°C to +150°C -55°C to +150°C
Note :
1. Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony pounds. 2. Non-repetitive current pulse 8/20 µs exponential decay waveform according to IEC61000-4-5.
Internal Structure
Marking Code
MCC Part No. ESD3V3T2B ESD7V0T2B ESD12VT2B ESD15VT2B ESD24VT2B ESD27VT2B ESD36VT2B
XX:Device code
Device Code 3B. 7B. 12B. 15B. 6RS. 27B. 36B.
ESD Protection
Device
SOT-23
DIMENSIONS
INCHES...
