ESDA6V1L - ESD Protection

Datasheet Summary

Features

  • Dual Transil Array For ESD Protection.
  • 2 Unidirectional Transil Functions.
  • Low leakageCurrent: IRmax.

📥 Download Datasheet

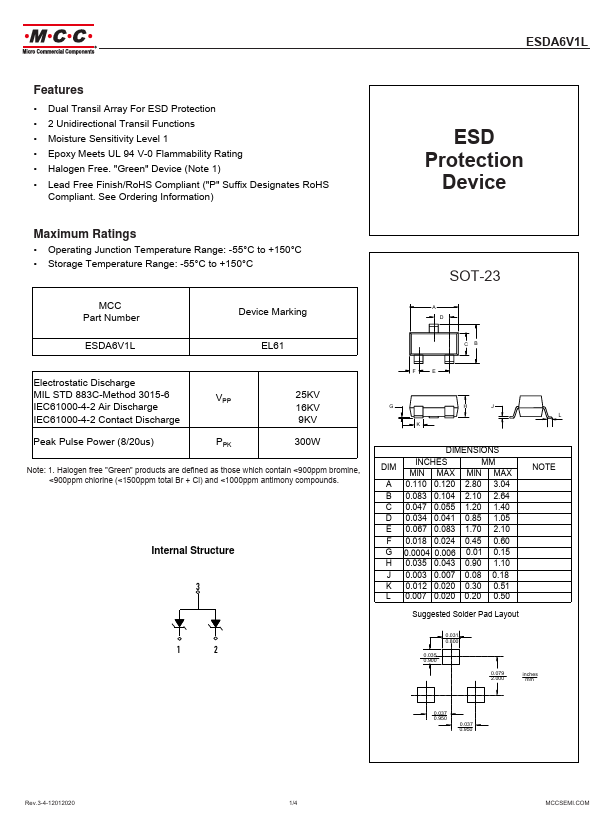

Datasheet preview – ESDA6V1L

Datasheet Details

Part number ESDA6V1L
Manufacturer MCC
File Size 588.35 KB
Description ESD Protection
Datasheet download datasheet ESDA6V1L Datasheet

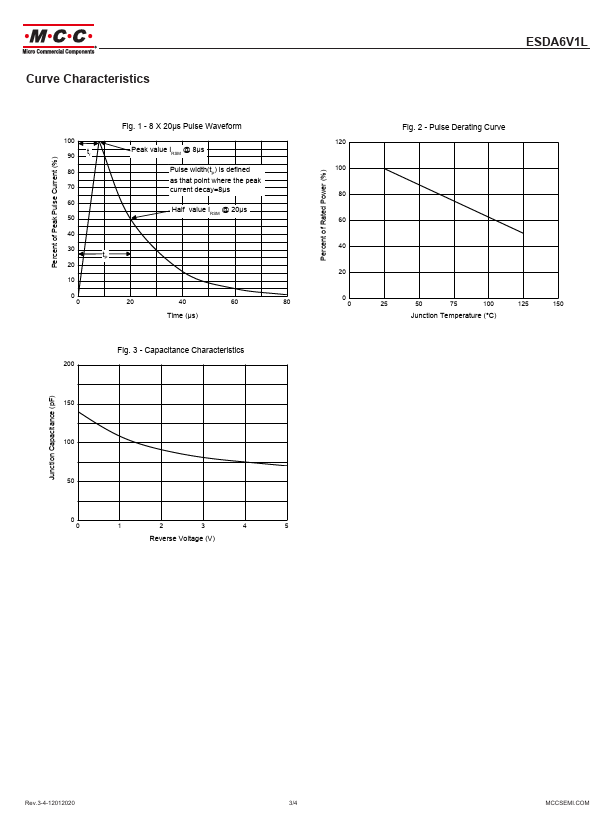

Additional preview pages of the ESDA6V1L datasheet.

📁 Similar Datasheet

  • ESDA6V1L - DUAL TRANSIL ARRAY (STMicroelectronics)
  • ESDA6V1L - ESD Protection Diodes (Kexin)
  • ESDA6V1LY - Automotive dual Transil array (STMicroelectronics)
  • ESDA6V1-4BC6 - QUAD BIDIRECTIONAL TRANSIL SUPPRESSOR (STMicroelectronics)
  • ESDA6V1-4F1 - QUAD TRANSIL ARRAY (STMicroelectronics)
  • ESDA6V1-5M6 - 4- and 5-line Transil arrays (STMicroelectronics)
  • ESDA6V1-5P6 - ESD protection (STMicroelectronics)
  • ESDA6V1-5SC6 - TRANSIL ARRAY FOR ESD PROTECTION (STMicroelectronics)
  • ESDA6V1-5T6 - TVS Clamping Arrays (STMicroelectronics)
  • ESDA6V1-5W6 - TRANSIL ARRAY FOR ESD PROTECTION (STMicroelectronics)
Other Datasheets by MCC

Full PDF Text Transcription

Click to expand full text
MCC TM Micro Commercial Components Micro Commercial Components 20736 Marilla Street Chatsworth Chatsworth, CA 91311 Phone: (818) 701-4933 Fax: (818) 701-4939 ESDA6V1L Features • Dual Transil Array For ESD Protection • 2 Unidirectional Transil Functions • Low leakageCurrent: IRmax<20 uA at VWM • 300W peak pulse power (8/20 us) • Epoxy meets UL 94 V-0 flammability rating • Moisture Sensitivity Level 1 • Halogen free available upon request by adding suffix "-HF" Maximum Ratings Parameter Electrostatic discharge MIL STD 883C-Method 3015-6 IEC61000-4-2 air discharge IEC61000-4-2 contact discharge Peak pulse power 8/20us Junction temperature Storage temperature range Maximum lead temperature For soldering during 10s Symbol VPP PPP Tj T stg TL Limits unit 25 KV 16 KV 9 KV 300 W 150
