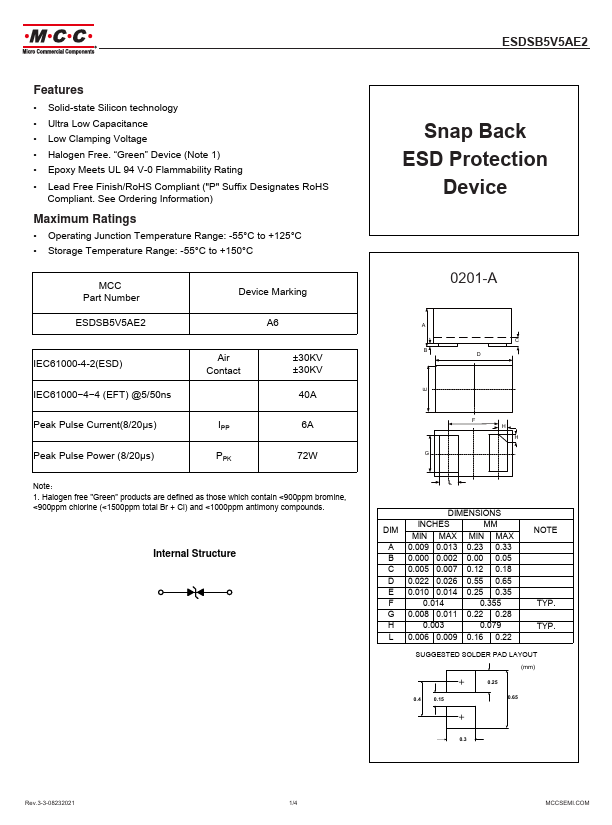

ESDSB5V5AE2
Features
- Solid-state Silicon technology
- Ultra Low Capacitance
- Low Clamping Voltage
- Halogen Free. “Green” Device (Note 1)
- Epoxy Meets UL 94 V-0 Flammability Rating
- Lead Free Finish/Ro HS pliant ("P" Suffix Designates Ro HS pliant. See Ordering Information)
Maximum Ratings
- Operating Junction Temperature Range: -55°C to +125°C
- Storage Temperature Range: -55°C to +150°C
MCC Part Number
Device Marking A6
IEC61000-4-2(ESD) IEC61000- 4- 4 (EFT) @5/50ns
Air Contact
±30KV ±30KV
40A
Peak Pulse Current(8/20μs)
6A
Peak Pulse Power (8/20μs)
72W
Note： 1. Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony pounds.
Internal Structure
Snap Back ESD Protection
Device
0201-A
- F H
- L
DIMENSIONS
INCHES MIN MAX
MM MIN...
