ESDUSBULC3V3AE2 - 1-Line Uni-directional Ultra Low Capacitance ESD

Features

  • Transient protection : - IEC 61000-4-2 (ESD) ±30kV (Air), ±30kV (Contact) - IEC 61000-4-5 (Lightning) 5A (8/20µs).
  • Uni-directional ESD protection of single line.
  • Reverse working voltage, VRWM: 3.3V.
  • Low capacitance: 0.2pF.
  • Low clamping voltage: 10V (max).
  • Low reverse leakage current: 100nA max at VR = 3.3V.
  • Solid-state silicon-avalanche 0201-A.

📥 Download Datasheet

📁 Similar Datasheet

Other Datasheets by MCC

Full PDF Text Transcription

Click to expand full text

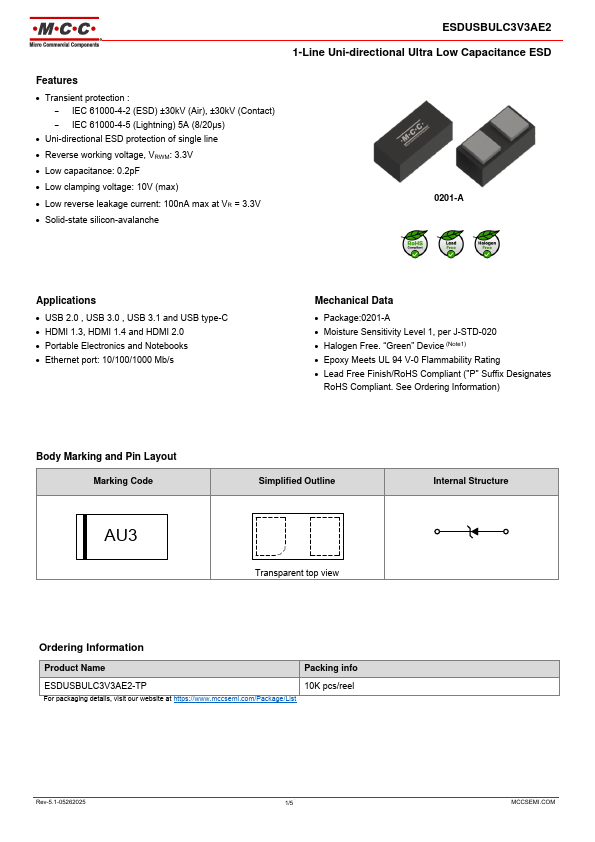

ESDUSBULC3V3AE2 1-Line Uni-directional Ultra Low Capacitance ESD Features • Transient protection : - IEC 61000-4-2 (ESD) ±30kV (Air), ±30kV (Contact) - IEC 61000-4-5 (Lightning) 5A (8/20µs) • Uni-directional ESD protection of single line • Reverse working voltage, VRWM: 3.3V • Low capacitance: 0.2pF • Low clamping voltage: 10V (max) • Low reverse leakage current: 100nA max at VR = 3.3V • Solid-state silicon-avalanche 0201-A Applications • USB 2.0 , USB 3.0 , USB 3.1 and USB type-C • HDMI 1.3, HDMI 1.4 and HDMI 2.0 • Portable Electronics and Notebooks • Ethernet port: 10/100/1000 Mb/s Mechanical Data • Package:0201-A • Moisture Sensitivity Level 1, per J-STD-020 • Halogen Free.
