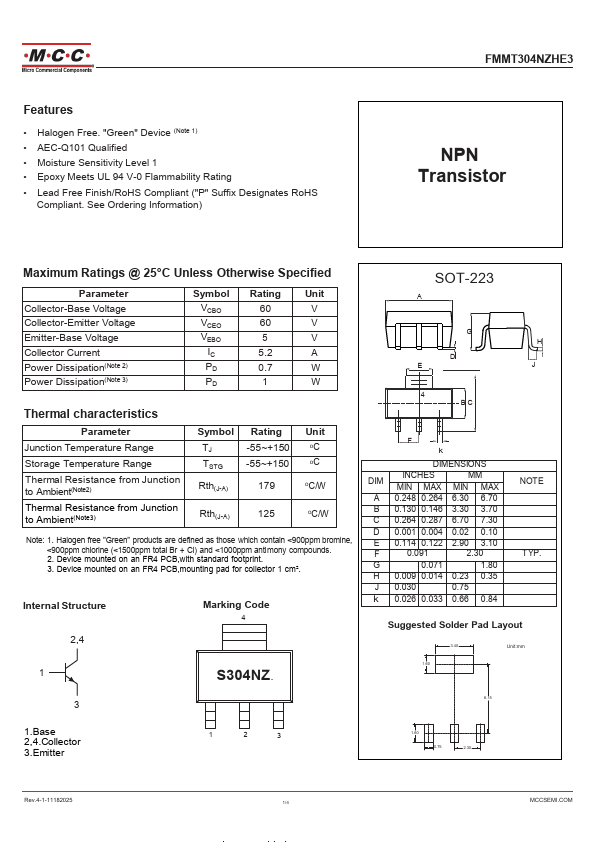

FMMT304NZHE3 Datasheet Summary
Features
+DORJHQ)UHH- UHHQ'HYLFH1RWH $(&44XDOLILHG 0RLVWXUH6HQVLWLYLW/HYHO (SR[0HHWV8/9)ODPPDELOLW5DWLQJ /HDG)UHH)LQLVK5R+6&RPSOLDQW36XIIL['HVLJQDWHV5R+6
&RPSOLDQW6HH2UGHULQJ,QIRUPDWLRQ
NPN Transistor
Maximum Ratings @ 25°C Unless Otherwise Specified
Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Power Dissipation(Note 2) Power Dissipation(Note 3)
Symbol VCBO VCEO VEBO IC PD PD
Rating 60 60 5 5.2 0.7 1
Unit V V V A W W
Thermal characteristics
Parameter Junction Temperature Range
Storage Temperature Range
Thermal Resistance from Junction to Ambient(Note2)
Thermal Resistance from Junction to Ambient(Note3)
Symbol TJ TSTG
Rating -55~+150 -55~+150
Rth(J-A)
179
Rth(J-A)
125
Unit oC oC oC/W oC/W
Note: 1. Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony pounds. 2. Device mounted on an FR4 PCB,with standard footprint. 3. Device mounted on an FR4 PCB,mounting pad for collector 1 cm².
Internal Structure 2,4
Marking Code
4
SOT-223
A
G...
