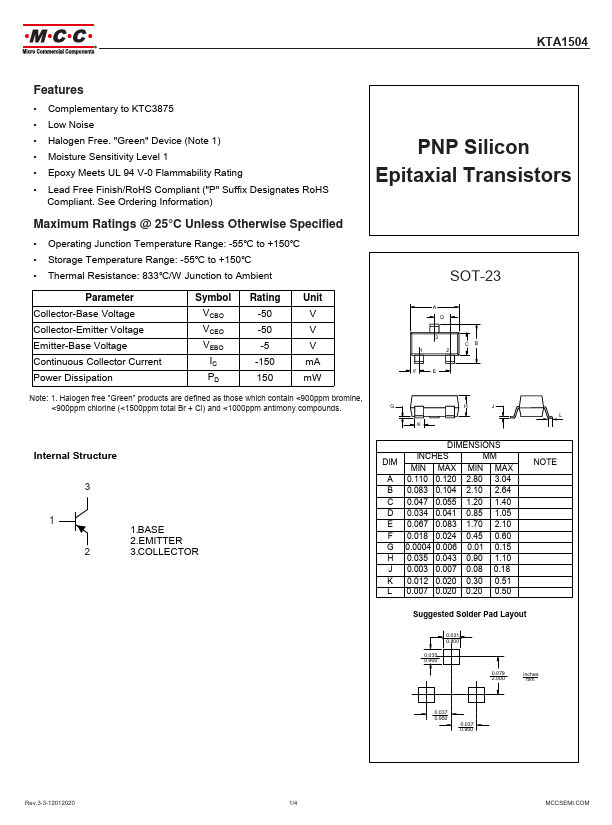

Micro Commercial Components KTA1504
PNP Silicon Epitaxial Transistors
| Part No. | KTA1504 |
|---|---|
| Datasheet | KTA1504 Download |
| Manufacturer |  Micro Commercial Components |
| Description | PNP Silicon Epitaxial Transistors |
| Buy | Stock & Price |
FEATURES
● Complementary to KTC3875● Low Noise
● Halogen Free. "Green" Device (Note 1)
● Moisture Sensitivity Level 1
● Epoxy Meets UL 94 V-0 Flammability Rating
● Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) PNP Silicon Epitaxial Transistors
MAXIMUM RATINGS
@ 25°C Unless Otherwise Specified● Operating Junction Temperature Range: -55℃ to +150℃
● Storage Temperature Range: -55℃ to +150℃
● Thermal Resistance: 833℃/W Junction to Ambient SOT-23 Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Power Dissipation Symbol VCBO VCEO VEBO IC PD Rating -50 -50 -5 -150 150 Unit V V V mA mW A D 3 1 2 CB F E Note: 1. Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds. G H J L K Internal Structure 3 1 2 1.BASE 2.EMITTER 3.COLLECTOR DIMENSIONS DIM INCHES MIN MAX MM MIN MAX A 0.110 0.120...
