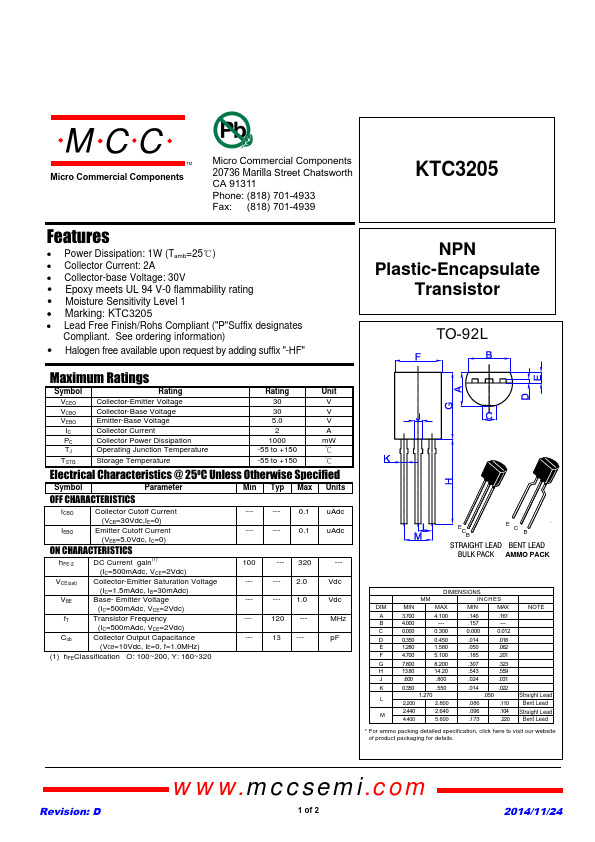

Micro Commercial Components KTC3205
NPN Plastic-Encapsulate Transistor
| Part No. | KTC3205 |
|---|---|
| Datasheet | KTC3205 Download |
| Manufacturer |  Micro Commercial Components |
| Description | NPN Plastic-Encapsulate Transistor |
| Buy | Stock & Price |
FEATURES
● Power Dissipation: 1W (Tamb=25ć)● Collector Current: 2A
● Collector-base Voltage: 30V
● Epoxy meets UL 94 V-0 flammability rating
● Moisture Sensitivity Level 1 x Marking: KTC3205
● Lead Free Finish/Rohs Compliant ("P"Suffix designates Compliant. See ordering information)
● Halogen free available upon request by adding suffix "-HF" NPN Plastic-Encapsulate Transistor TO-92L
MAXIMUM RATINGS
Symbol Rating Rating Unit VCEO VCBO VEBO IC PC TJ Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Operating Junction Temperature 30 V 30 V 5.0 V 2 A 1000 mW -55 to +150 к TSTG Storage Temperature -55 to +150 кELECTRICAL CHARACTERISTICS
@ 25OC Unless Otherwise Specified Symbol Parameter OFF CHARACTERISTICS ICBO Collector Cutoff Current (VCB=30Vdc,IE=0) IEBO Emitter Cutoff Current (VEB=5.0Vdc, IC=0) ON CHARACTERISTICS hFE-2 DC Current gain(1) (IC=500mAdc, VCE=2Vdc) VCE(sat) Collector-Emitter Saturation Voltage (IC=1.5mAdc,...
