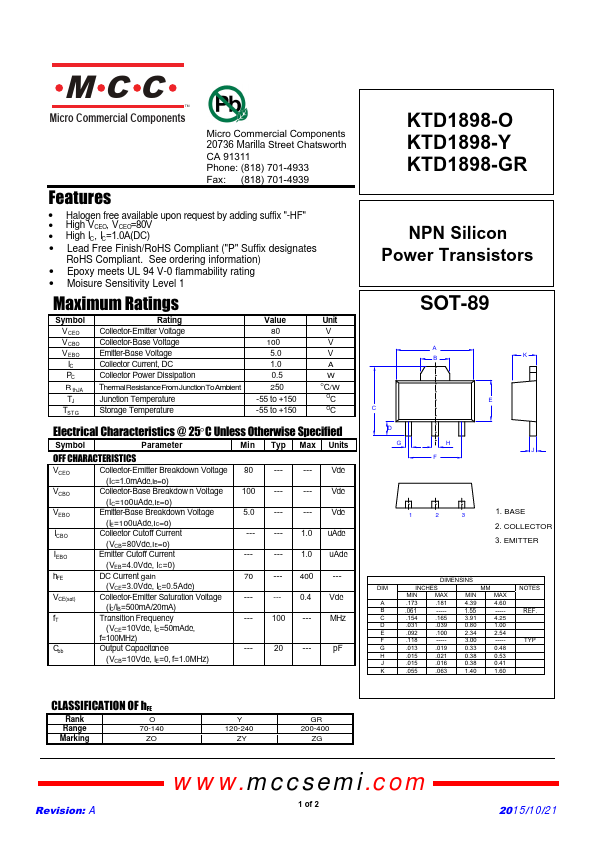

KTD1898
KTD1898 is NPN Silicon Power Transistors manufactured by Micro Commercial Components.
Features
- Halogen free available upon request by adding suffix "-HF"
- High VCEO, VCEO=80V
- High IC, IC=1.0A(DC)
- Lead Free Finish/Ro HS pliant ("P" Suffix designates Ro HS pliant. See ordering information)
- Epoxy meets UL 94 V-0 flammability rating
- Moisure Sensitivity Level 1
Maximum Ratings
Symbol VCEO VCBO VEBO IC PC
R th JA TJ TSTG
Rating Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current, DC Collector Power Dissipation
Thermal Resistance From Junction To Ambient Junction Temperature Storage Temperature
Value 80
100 5.0 1.0 0.5
250 -55 to +150 -55 to +150
Unit
OC/W OC OC
Electrical Characteristics @ 25°C Unless Otherwise Specified
Symbol
Parameter
Min Typ Max Units
OFF CHARACTERISTICS
VCEO VCBO
Collector-Emitter Breakdown Voltage 80 --(IC=1.0m Adc,IB=0)
Collector-Base Breakdow n Voltage 100 ---
-----
Vdc Vdc
(IC=100u...
