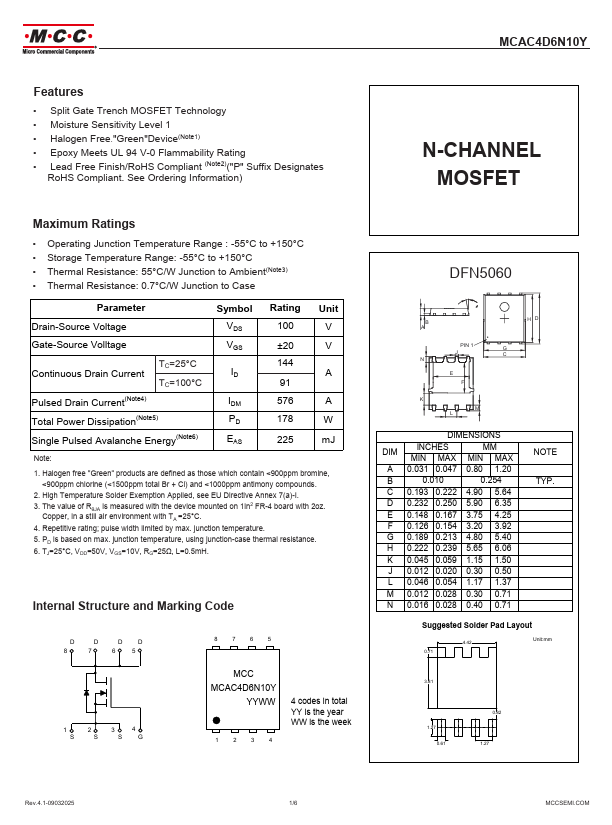

MCAC4D6N10Y
Features
- Split Gate Trench MOSFET Technology
- Moisture Sensitivity Level 1
- Halogen Free"Green"Device(Note1)
- Epoxy Meets UL 94 V-0 Flammability Rating
- Lead Free Finish/Ro HS pliant (Note2)("P" Suffix Designates
Ro HS pliant. See Ordering Information)
N-CHANNEL MOSFET
Maximum Ratings
- Operating Junction Temperature Range : -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Thermal Resistance: 55°C/W Junction to Ambient(Note3)
- Thermal Resistance: 0.7°C/W Junction to Case
Parameter
Symbol Rating Unit
Drain-Source Voltage
Gate-Source Volltage
TC=25°C Continuous Drain Current
TC=100°C
Pulsed Drain Current(Note4)
Total Power Dissipation(Note5)
±20
144 A
Single Pulsed Avalanche Energy(Note6)
225 m J
Note:
1. Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony pounds.
2. High Temperature Solder Exemption...
