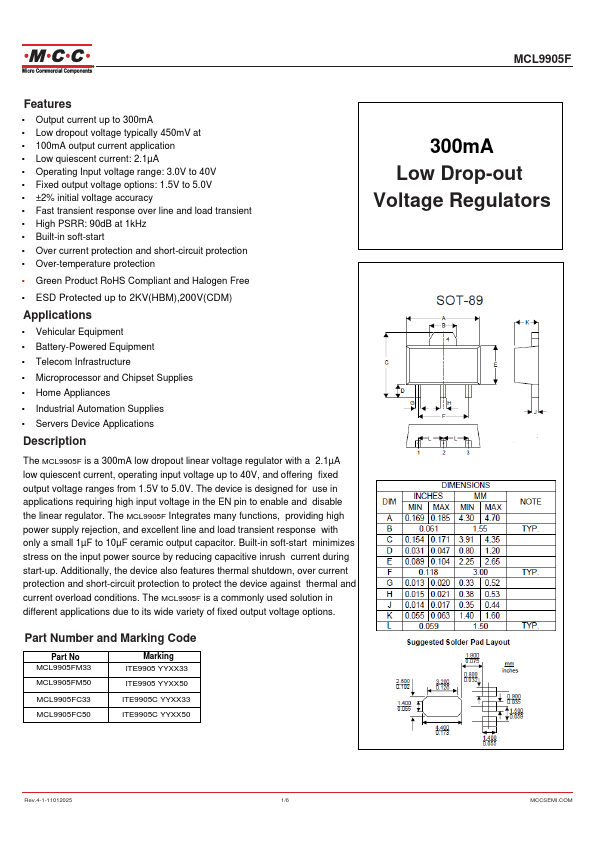

Features - Output current up to 300mA - Low dropout voltage typically 450mV at - 100mA output current application - Low quiescent current: 2.1µA - Operating Input voltage range: 3.0V to 40V - Fixed output voltage options: 1.5V to 5.0V - ±2% initial voltage accuracy - Fast transient response over line and load transient - High PSRR: 90dB at 1kHz - Built-in soft-start - Over current protection and short-circuit protection - Over-temperature protection - Green Product RoHS pliant and Halogen Free - ESD Protected up to 2KV(HBM),200V(CDM) Applications - Vehicular Equipment - Battery-Powered Equipment - Tele Infrastructure - Microprocessor and Chipset Supplies - Home Appliances - Industrial Automation Supplies - Servers Device Applications Description The MCL9905F is a 300mA low dropout linear voltage regulator with a 2.1µA low quiescent current, operating input voltage up to 40V, and offering fixed output voltage ranges from 1.5V to 5.0V. The device is designed for use in applications requiring high input voltage in the EN pin to enable and disable the linear regulator. The MCL9905F Integrates many functions, providing high power supply rejection, and excellent line and load transient response with only a small 1µF to 10µF ceramic output capacitor. Built-in soft-start minimizes stress on the input power source by reducing capacitive inrush current during start-up. Additionally, the device also Features thermal shutdown, over current protection and short-circuit protection to protect the device against thermal and current overload conditions. The MCL9905F is a monly used solution in different applications due to its wide variety of fixed output voltage options. 300mA Low Drop-out Voltage Regulators Part Number and Marking Code Part No MCL9905FM33...
