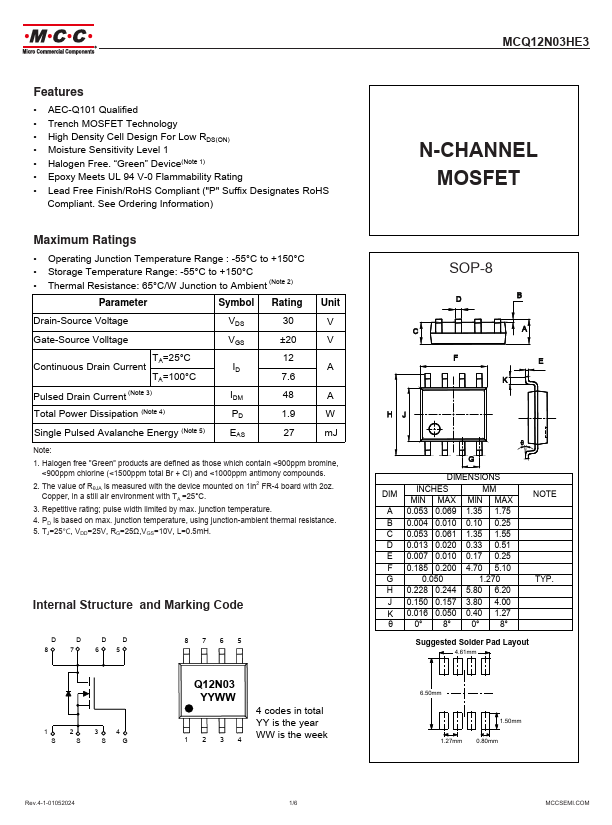

MCQ12N03HE3
MCQ12N03HE3 is N-CHANNEL MOSFET manufactured by Micro Commercial Components.
Features
- AEC-Q101 Qualified
- Trench MOSFET Technology
- High Density Cell Design For Low RDS(ON)
- Moisture Sensitivity Level 1
- Halogen Free. “Green” Device(Note 1)
- Epoxy Meets UL 94 V-0 Flammability Rating
- Lead Free Finish/Ro HS pliant ("P" Suffix Designates Ro HS pliant. See Ordering Information)
Maximum Ratings
- Operating Junction Temperature Range : -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Thermal Resistance: 65°C/W Junction to Ambient (Note 2)
Parameter
Symbol Rating Unit
Drain-Source Voltage
Gate-Source Volltage
TA=25°C Continuous Drain Current
TA=100°C
Pulsed Drain Current (Note 3)
Total Power Dissipation (Note 4)
Single Pulsed Avalanche Energy (Note 5)
±20
12 A
27 m J
Note:
1. Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony pounds.
2. The value of RθJA is measured with the device mounted on 1in2 FR-4 board with 2oz. Copper, in a still air environment with TA =25°C.
3. Repetitive rating; pulse width limited by max. junction temperature. 4. PD is based on max. junction temperature, using junction-ambient thermal resistance. 5. TJ=25ǔ, VDD=25V, RG=25Ω,VGS=10V, L=0.5m H.

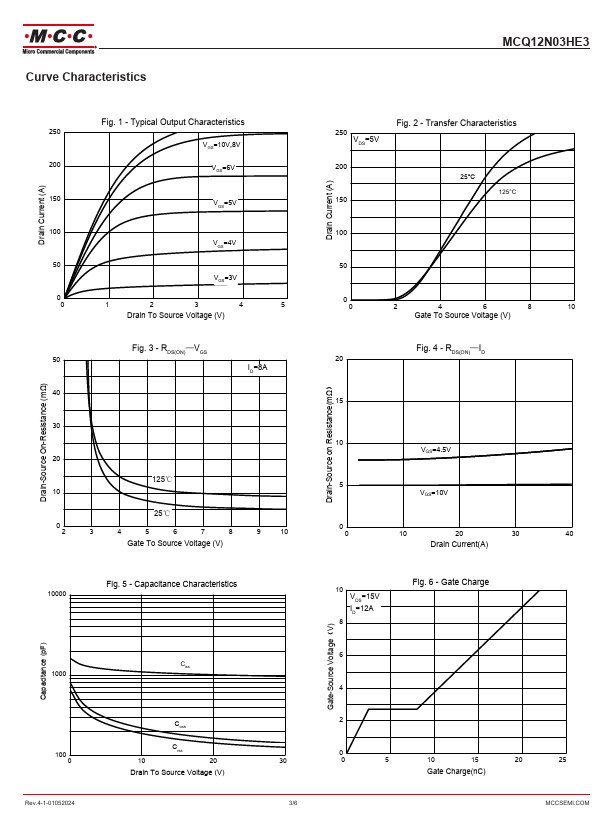

Internal Structure and Marking...
