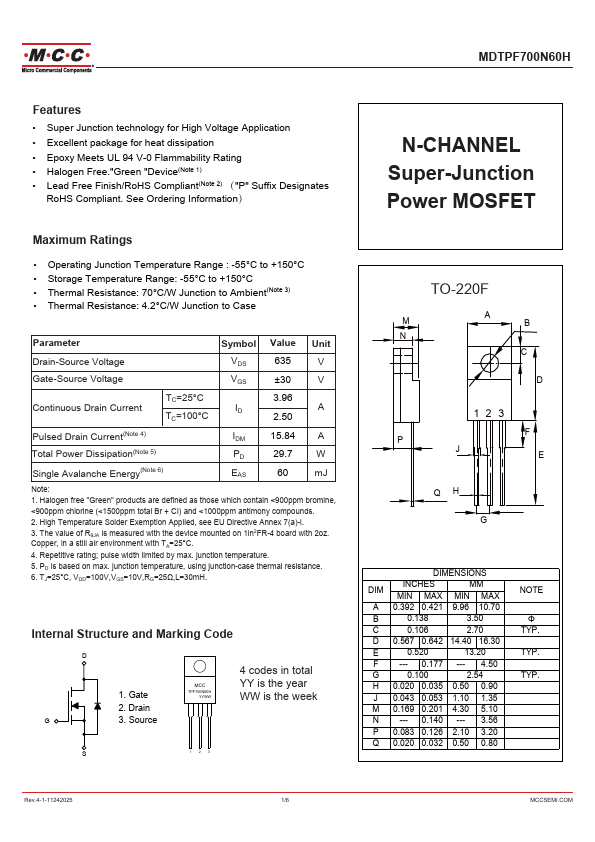

MDTPF700N60H
Features
- Super Junction technology for High Voltage Application
- Excellent package for heat dissipation
- Epoxy Meets UL 94 V-0 Flammability Rating
- Halogen Free."Green "Device(Note 1)
- Lead Free Finish/Ro HS pliant(Note 2) （"P" Suffix Designates
Ro HS pliant. See Ordering Information）
Maximum Ratings
- Operating Junction Temperature Range : -55°C to +150°C
- Storage Temperature Range: -55°C to +150°C
- Thermal Resistance: 70°C/W Junction to Ambient(Note 3)
- Thermal Resistance: 4.2°C/W Junction to Case
Parameter
Symbol Value Unit
Drain-Source Voltage Gate-Source Voltage
±30
TC=25°C
Continuous Drain Current
TC=100°C
3.96 A
Pulsed Drain Current(Note 4) Total Power Dissipation(Note 5)
15.84 A
29.7 W
Single Avalanche Energy(Note 6)
60 m J
Note: 1. Halogen free "Green" products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + CI) and <1000ppm antimony pounds. 2. High Temperature Solder...
