MMBD4148SE - 350mW High Conductance Ultra Fast Diode

Key Features

  • Surface Mount Package Ideally Suited for Automatic Insertion.
  • Moisture Sensitivity Level 1.
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Halogen Free. "Green" Device (Note 1).
  • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings.
  • Operating Junction Temperature Range: -55°C to +150°C.
  • Storage Temperature Range: -55°C to +150°C.
  • Thermal Resistance: 357°C/W Junction to.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MMBD4148SE Small Signal Diode Fairchild Semiconductor
MMBD4148SE Surface Mount Switching Diode LGE
MMBD4148SE SWITCHING DIODE Transys
MMBD4148SE FAST SWITCHING DIODE LITE-ON
MMBD4148SE SMD Switching Diode Taiwan Semiconductor

Other Datasheets by Micro Commercial Components

Part Number Description
MMBD4148 Silicon Epitaxial Diode
MMBD4148CA 350mW High Conductance Ultra Fast Diode
MMBD4148CC 350mW High Conductance Ultra Fast Diode
MMBD4148TW 200mW Switching Diode
MMBD4148WT Switching Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

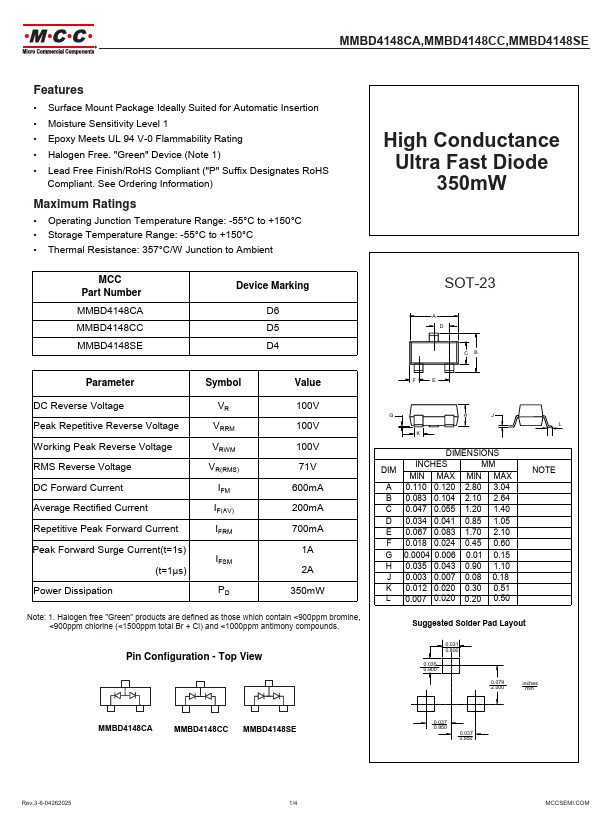

MMBD4148CA,MMBD4148CC,MMBD4148SE Features • Surface Mount Package Ideally Suited for Automatic Insertion • Moisture Sensitivity Level 1 • Epoxy Meets UL 94 V-0 Flammability Rating • Halogen Free. "Green" Device (Note 1) • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant.
