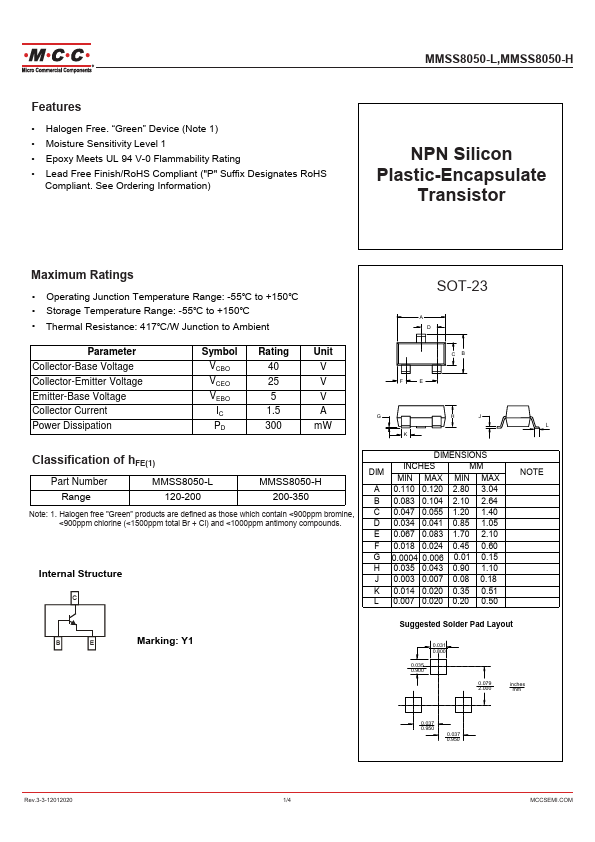

MMSS8050-H - NPN Silicon Plastic-Encapsulate Transistor

Download the MMSS8050-H datasheet PDF (MMSS8050-L included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for npn silicon plastic-encapsulate transistor.

Features

  • Halogen Free. “Green” Device (Note 1).
  • Moisture Sensitivity Level 1.
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) MMSS8050-L,MMSS8050-H NPN Silicon Plastic-Encapsulate Transistor Maximum Ratings.
  • Operating Junction Temperature Range: -55℃ to +150℃.
  • Storage Temperature Range: -55℃ to +150℃.
  • Thermal Resistance: 417℃/W Junction to Ambient.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MMSS8050-L-MCC.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • MMSS8550 - PNP Amplifier (Yangzhou Yangjie)
  • MMSS8550 - PNP Silicon Plastic-Encapsulate Transistor (Lunsure Electronic)
  • MMS-122-01 - (MMS-xxxx) 2mm Socket Strips (Samtec)
  • MMS-122-01-L-DH - (MMS-xxxx) 2mm Socket Strips (Samtec)
  • MMS-122-02 - (MMS-xxxx) 2mm Socket Strips (Samtec)
  • MMS-122-02-F-SH - (MMS-xxxx) 2mm Socket Strips (Samtec)
  • MMS-122-04 - (MMS-xxxx) 2mm Socket Strips (Samtec)
  • MMS-xxx-01 - (MMS-xxxx) 2mm Socket Strips (Samtec)
  • MMS-xxx-02 - (MMS-xxxx) 2mm Socket Strips (Samtec)
  • MMS-xxx-04 - (MMS-xxxx) 2mm Socket Strips (Samtec)
Other Datasheets by MCC

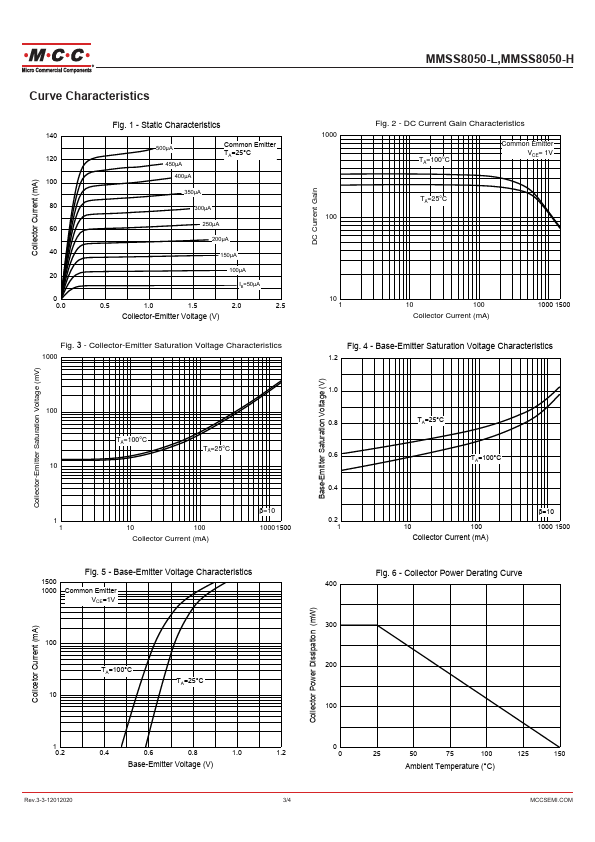

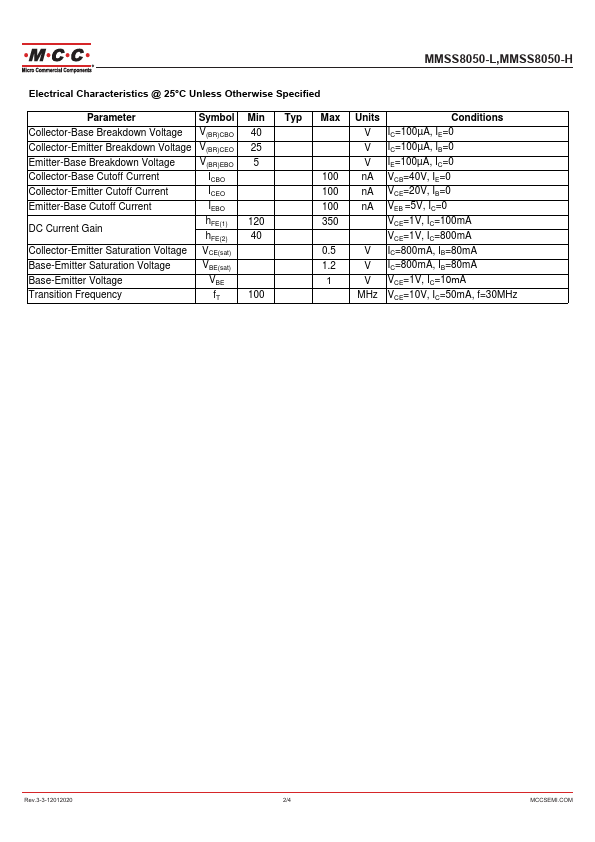

Full PDF Text Transcription

Click to expand full text
Features • Halogen Free. “Green” Device (Note 1) • Moisture Sensitivity Level 1 • Epoxy Meets UL 94 V-0 Flammability Rating • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) MMSS8050-L,MMSS8050-H NPN Silicon Plastic-Encapsulate Transistor Maximum Ratings • Operating Junction Temperature Range: -55℃ to +150℃ • Storage Temperature Range: -55℃ to +150℃ • Thermal Resistance: 417℃/W Junction to Ambient SOT-23 A D Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Power Dissipation Symbol VCBO VCEO VEBO IC PD Rating 40 25 5 1.5 300 Unit V V V A mW F E CB G K H J Classification of hFE(1) Part Number Range MMSS8050-L 120-200 MMSS8050-H 200-350 Note: 1.
