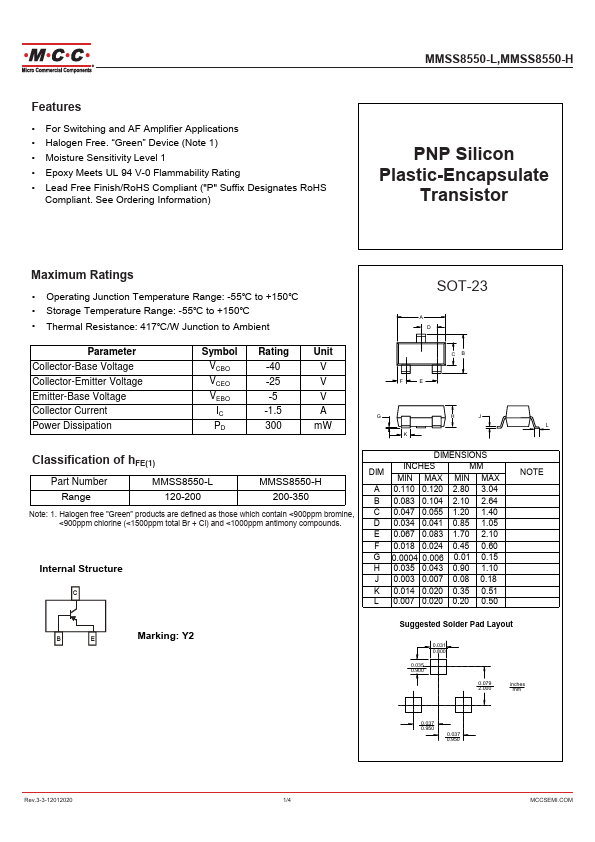

Features - For Switching and AF Amplifier Applications - Halogen Free. “Green” Device (Note 1) - Moisture Sensitivity Level 1 - Epoxy Meets UL 94 V-0 Flammability Rating - Lead Free Finish/Ro HS pliant ("P" Suffix Designates Ro HS pliant. See Ordering Information) MMSS8550-L,MMSS8550-H PNP Silicon Plastic-Encapsulate Transistor Maximum Ratings - Operating Junction Temperature Range: -55℃ to +150℃ - Storage Temperature Range: -55℃ to +150℃ - Thermal Resistance: 417℃/W Junction to Ambient SOT-23 Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Power Dissipation Symbol VCBO VCEO VEBO IC PD Rating -40 -25 -5 -1.5 300 Unit V V V A m W Classification of h FE(1) Part Number Range MMSS8550-L 120-200 MMSS8550-H 200-350 Note: 1. Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony pounds. Internal Structure DIMENSIONS INCHES MIN MAX MIN MAX A 0.110 0.120 2.80 3.04 B 0.083 0.104 2.10 2.64 C 0.047 0.055 1.20 1.40 D 0.034 0.041 0.85 1.05 E 0.067 0.083 1.70 2.10 F 0.018 0.024 0.45 0.60 G 0.0004 0.006 0.01 0.15 H 0.035 0.043 0.90...
