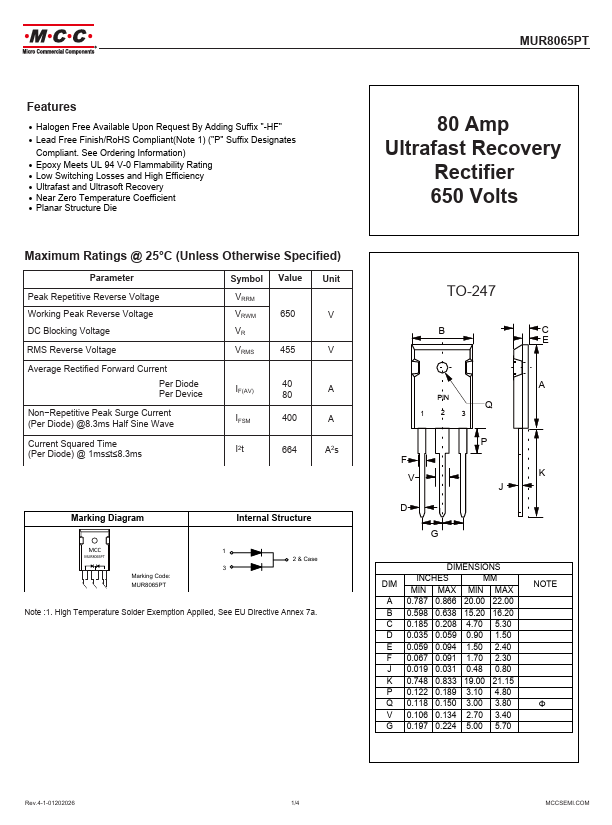

MUR8065PT Datasheet Summary
Features
- Halogen Free Available Upon Request By Adding Suffix "-HF"
- Lead Free Finish/RoHS pliant(Note 1) ("P" Suffix Designates pliant. See Ordering Information)
- Epoxy Meets UL 94 V-0 Flammability Rating
- Low Switching Losses and High Efficiency
- Ultrafast and Ultrasoft Recovery
- Near Zero Temperature Coefficient
- Planar Structure Die
Maximum Ratings @ 25°C (Unless Otherwise Specified)
Parameter
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage
RMS Reverse Voltage
Average Rectified Forward Current Per Diode Per Device
Non- Repetitive Peak Surge Current (Per Diode) @8.3ms Half Sine Wave
Symbol VRRM VRWM VR VRMS
Value 650 455
Unit V V
IF(AV)
40 80
A
IFSM
400
A
Current Squared Time (Per Diode) @ 1ms≤t≤8.3ms
I2t
664
A2s
Marking Diagram
Internal...
