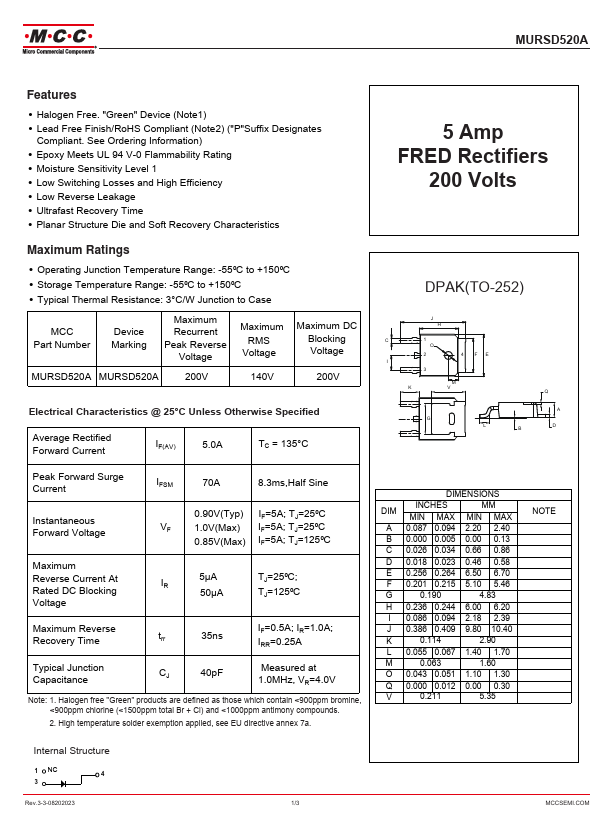

MURSD520A Datasheet Summary
Features
- Halogen Free. "Green" Device (Note1)
- Lead Free Finish/RoHS pliant (Note2) ("P"Suffix Designates pliant. See Ordering Information)
- Epoxy Meets UL 94 V-0 Flammability Rating
- Moisture Sensitivity Level 1
- Low Switching Losses and High Efficiency
- Low Reverse Leakage
- Ultrafast Recovery Time
- Planar Structure Die and Soft Recovery Characteristics
Maximum Ratings
- Operating Junction Temperature Range: -55⁰C to +150⁰C
- Storage Temperature Range: -55⁰C to +150⁰C
- Typical Thermal Resistance: 3°C/W Junction to Case
MCC Part Number
Device Marking
Maximum Recurrent Peak Reverse
Voltage
Maximum
RMS Voltage
Maximum DC Blocking Voltage
MURSD520A MURSD520A
200V
140V
200V
Electrical Characteristics @ 25°C Unless Otherwise Specified
Average Rectified Forward Current
IF(AV)
5.0A
TC = 135°C
5 Amp FRED...
