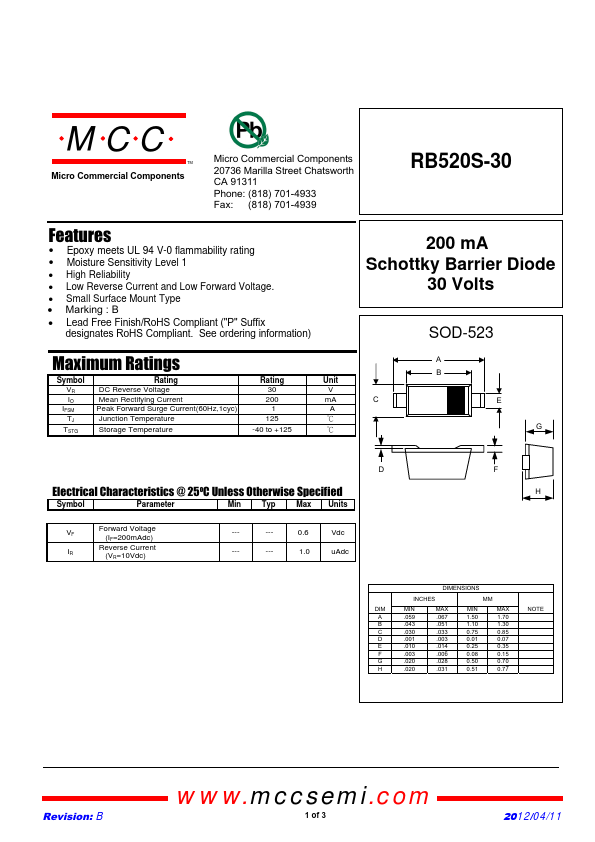

Micro Commercial Components RB520S-30
30V 200mA Schottky Barrier Diode
| Part No. | RB520S-30 |
|---|---|
| Datasheet | RB520S-30 Download |
| Manufacturer |  Micro Commercial Components |
| Description | 30V 200mA Schottky Barrier Diode |
| Buy | Stock & Price |
FEATURES
● Epoxy meets UL 94 V-0 flammability rating● Moisture Sensitivity Level 1
● High Reliability
● Low Reverse Current and Low Forward Voltage.
● Small Surface Mount Type x Marking : B
● Lead Free Finish/RoHS Compliant ("P" Suffix designates RoHS Compliant. See ordering information) 200 mA Schottky Barrier Diode 30 Volts SOD-523
MAXIMUM RATINGS
Symbol Rating Rating Unit VR DC Reverse Voltage 30 V IO Mean Rectifying Current 200 mA C IFSM Peak Forward Surge Current(60Hz,1cyc) 1 A TJ Junction Temperature 125 к TSTG Storage Temperature -40 to +125 к A B E G DELECTRICAL CHARACTERISTICS
@ 25OC Unless Otherwise Specified Symbol Parameter Min Typ Max Units VF Forward Voltage (IF=200mAdc) IR Reverse Current (VR=10Vdc) --- --- 0.6 Vdc --- --- 1.0 uAdc F H DIMENSIONS INCHES MM DIM MIN A .059 B .043 C .030 D .001 E .010 F .003 G .020 H .020 MAX .067 .051 .033 .003 .014 .006 .028 .031 MIN 1.50 1.10 0.75 0.01 0.25 0.08 0.50 0.51 MAX 1.70 1.30 0.85 0.07 0.35 0.15 0.70 0.77 NOTE Revision: B 1 o...
