RB521S-30 - 200mA 30V Schottky Barrier Diode

Key Features

  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Moisture Sensitivity Level 1.
  • High Reliability.
  • Low Reverse Current and Low Forward Voltage.
  • Small Surface Mount Type.

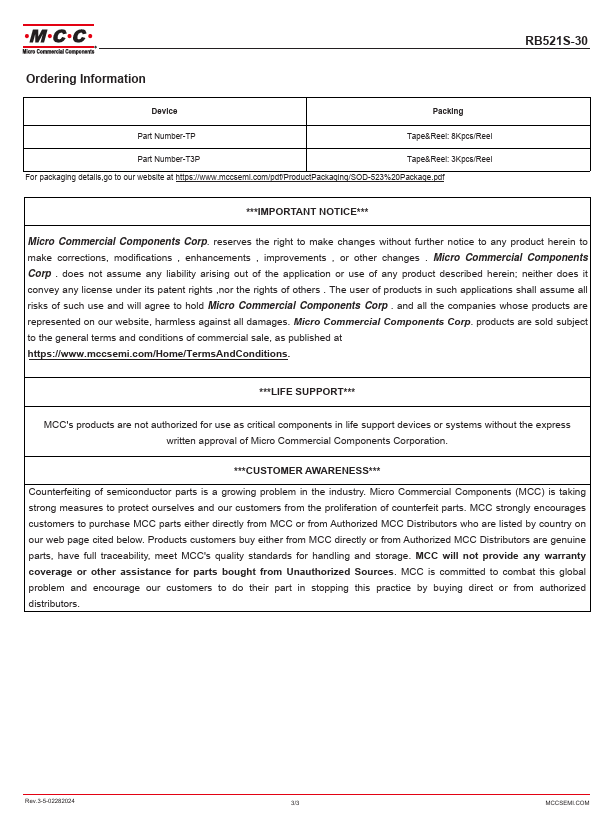

  • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information).
  • Halogen Free. “Green” Device (Note 1) Maximum Ratings.
  • Operating Junction Temperature Range: -55°C to +125°C.
  • Storage Temperature Range: -55°C to +150°C.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
RB521S-30 Schottky barrier Diode JCET
RB521S-30 Schottky barrier diode Rohm
RB521S-30 Silicon Epitaxial Planar Schottky Barrier Diode JGD
RB521S-30 SCHOTTKY DIODES AiT Components
RB521S-30 Schottky barrier Diodes Crownpo

Other Datasheets by Micro Commercial Components

Part Number Description
RB521S-30DP 100mA Schottky Barrier Diode
RB521G-30 Schottky Barrier Diode
RB520G-30 Schottky Barrier Diode
RB520S-30DP 100mA Schottky Barrier Diode
RB520S-30L2 Schottky Rectifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

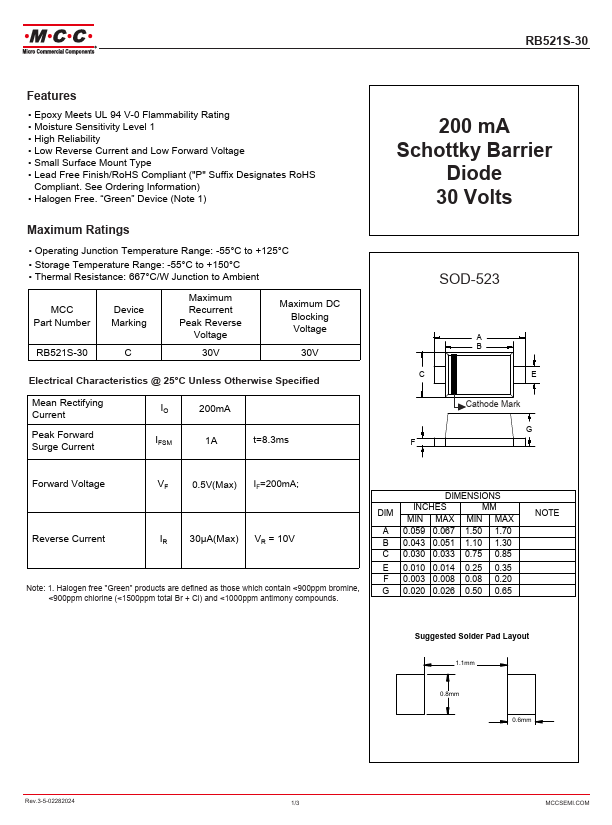

RB521S-30 Features • Epoxy Meets UL 94 V-0 Flammability Rating • Moisture Sensitivity Level 1 • High Reliability • Low Reverse Current and Low Forward Voltage • Small Surface Mount Type • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) • Halogen Free. “Green” Device (Note 1) Maximum Ratings • Operating Junction Temperature Range: -55°C to +125°C • Storage Temperature Range: -55°C to +150°C • Thermal Resistance: 667°C/W Junction to Ambient MCC Part Number Device Marking RB521S-30 C Maximum Recurrent Peak Reverse Voltage 30V Maximum DC Blocking Voltage 30V Electrical Characteristics @ 25°C Unless Otherwise Specified Mean Rectifying Current IO 200mA Peak Forward Surge Current IFSM 1A t=8.
