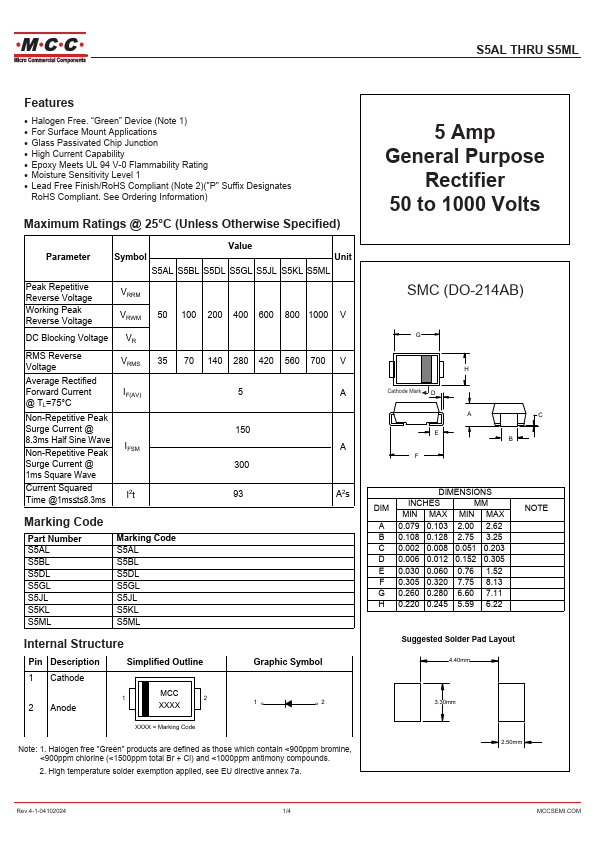

S5AL Overview
1 Cathode Simplified Outline 2 Anode 1 MCC 2 XXXX Graphic Symbol 1 2 XXXX = Marking Code Note: Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony pounds. High temperature solder exemption applied, see EU directive annex 7a.
S5AL Key Features
- Halogen Free. “Green” Device (Note 1)
- For Surface Mount
