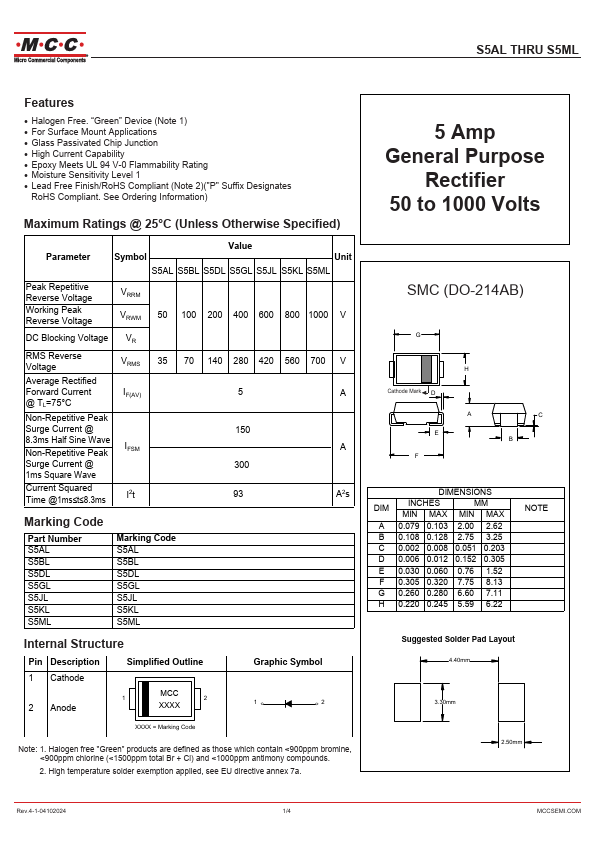

S5BL
Features
- Halogen Free. “Green” Device (Note 1)
- For Surface Mount Applications
- Glass Passivated Chip Junction
- High Current Capability
- Epoxy Meets UL 94 V-0 Flammability Rating
- Moisture Sensitivity Level 1
- Lead Free Finish/Ro HS pliant (Note 2)("P" Suffix Designates
Ro HS pliant. See Ordering Information)
Maximum Ratings @ 25°C (Unless Otherwise Specified)
Parameter
Value
Symbol
Unit
S5AL S5BL S5DL S5GL S5JL S5KL S5ML
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage
VRRM VRWM
50 100 200 400 600 800 1000 V
DC Blocking Voltage VR
RMS Reverse Voltage
VRMS 35 70 140 280 420 560 700 V
Average Rectified
Forward Current
IF(AV)
@ TL=75°C
Non-Repetitive Peak
Surge Current @
8.3ms Half Sine Wave Non-Repetitive Peak
IFSM
Surge Current @
1ms Square Wave
150 A
Current Squared Time @1ms≤t≤8.3ms
I2t
A2s
Marking Code
Part Number S5AL S5BL S5DL S5GL S5JL S5KL...
