Micro Commercial Components S5DL

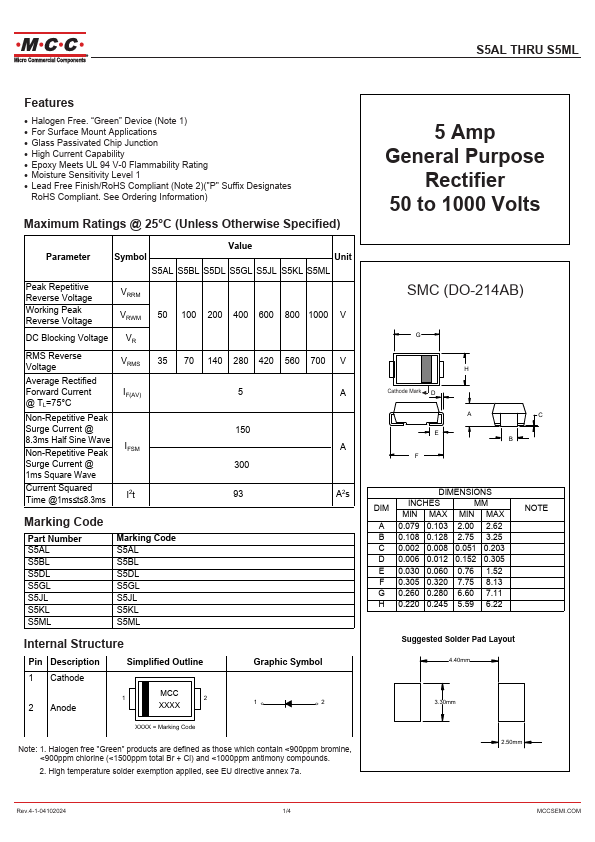

5 Amp General Purpose Rectifier
| Part No. | S5DL |
|---|---|
| Datasheet | S5DL Download |
| Manufacturer |  Micro Commercial Components |
| Description | 5 Amp General Purpose Rectifier |
| Buy | Stock & Price |
FEATURES
● Halogen Free. “Green” Device (Note 1)● For Surface Mount
APPLICATIONS
● Glass Passivated Chip Junction● High Current Capability
● Epoxy Meets UL 94 V-0 Flammability Rating
● Moisture Sensitivity Level 1
● Lead Free Finish/RoHS Compliant (Note 2)("P" Suffix Designates RoHS Compliant. See Ordering Information)
MAXIMUM RATINGS
@ 25°C (Unless Otherwise Specified) Parameter Value Symbol Unit S5AL S5BL S5DL S5GL S5JL S5KL S5ML Peak Repetitive Reverse Voltage Working Peak Reverse Voltage VRRM VRWM 50 100 200 400 600 800 1000 V DC Blocking Voltage VR RMS Reverse Voltage VRMS 35 70 140 280 420 560 700 V Average Rectified Forward Current IF(AV) 5 A @ TL=75°C Non-Repetitive Peak Surge Current @ 8.3ms Half Sine Wave Non-Repetitive Peak IFSM Surge Current @ 1ms Square Wave 150 A 300 Current Squared Time @1ms≤t≤8.3ms I2t 93 A2s Marking Code Part Number S5AL S5BL S5DL S5GL S5JL S5KL S5ML Marking Code S5AL S5BL S5DL S5GL S5JL S5KL S5ML Internal Structure PinDESCRIPTION

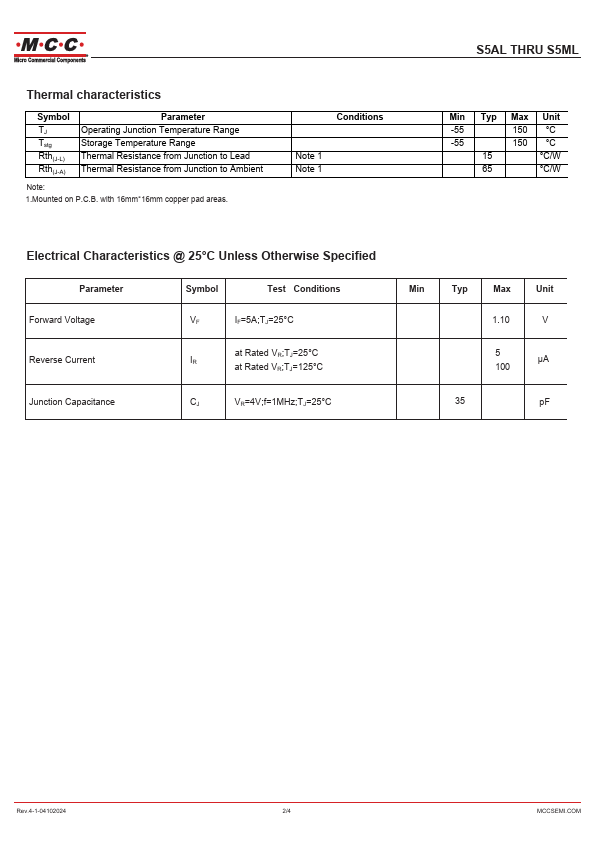

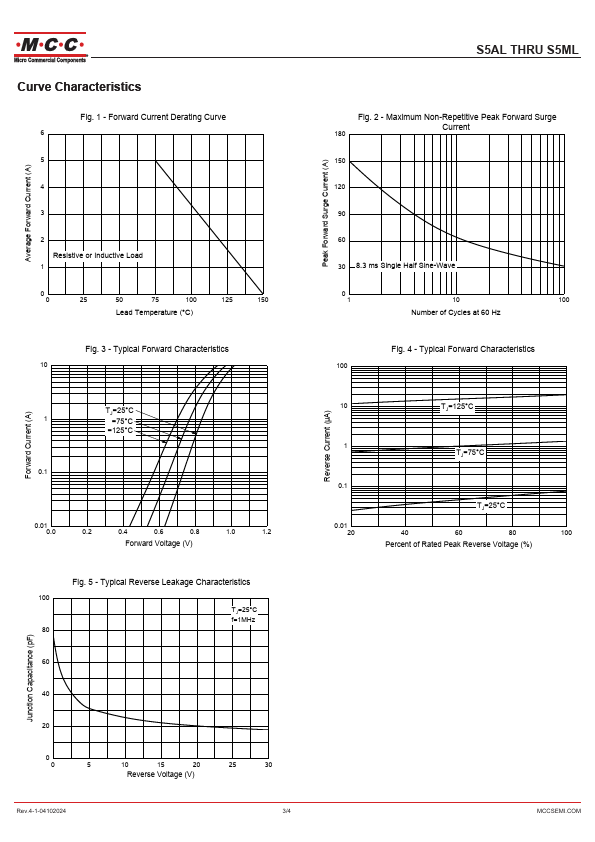

1 Cathode Simplified Outline 2 Anode 1 MCC 2 XXXX Graphic Symbol 1 2 XXXX = Marking Code Note: 1.
