Datasheet Details
| Part number | S5GL |
|---|---|
| Manufacturer | Micro Commercial Components |
| File Size | 670.97 KB |
| Description | 5 Amp General Purpose Rectifier |
| Download |
S5GL Download (PDF)
|
|
|
| Part number | S5GL |
|---|---|
| Manufacturer | Micro Commercial Components |
| File Size | 670.97 KB |
| Description | 5 Amp General Purpose Rectifier |
| Download |
S5GL Download (PDF)
|
|
|
|

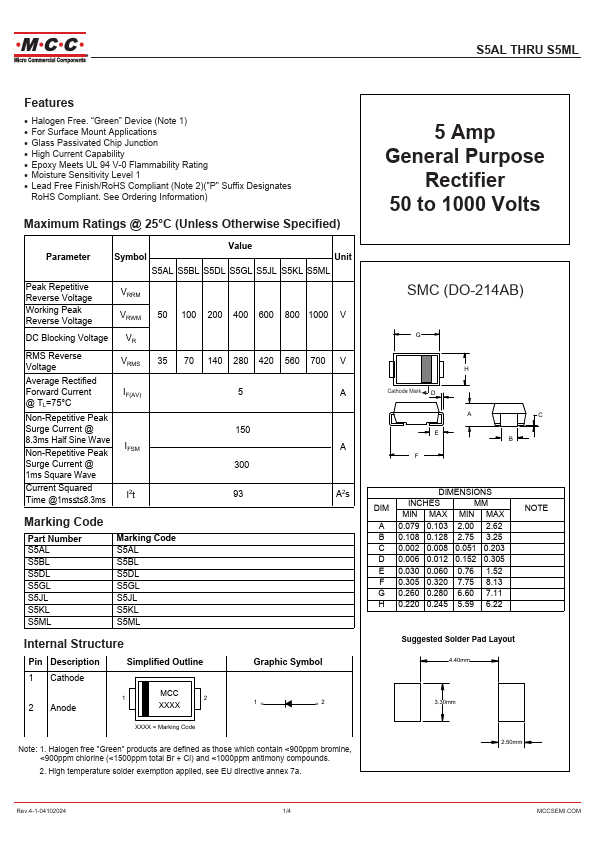

1 Cathode Simplified Outline 2 Anode 1 MCC 2 XXXX Graphic Symbol 1 2 XXXX = Marking Code Note: 1.
Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds.
2.
S5AL THRU S5ML.
