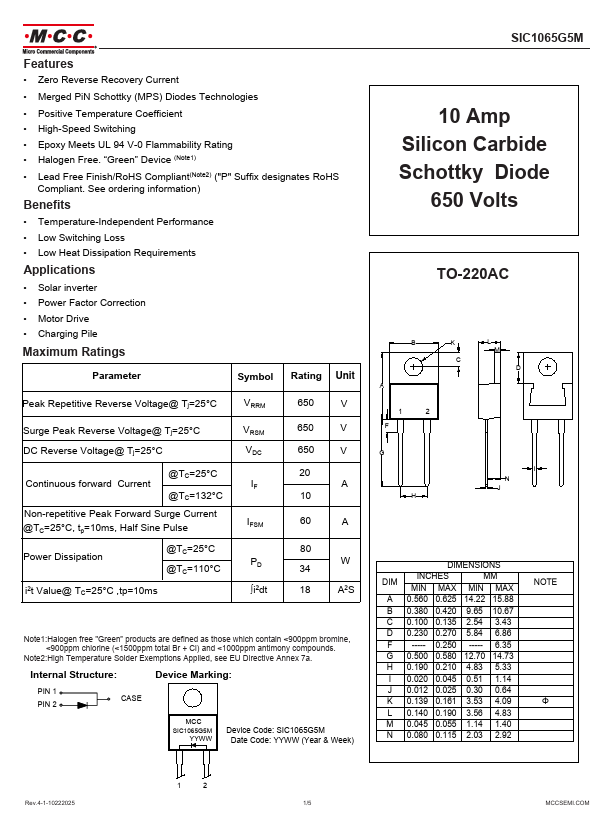

Micro Commercial Components SIC1065G5M
10 Amp Silicon Carbide Schottky Diode
| Part No. | SIC1065G5M |
|---|---|
| Datasheet | SIC1065G5M Download |
| Manufacturer |  Micro Commercial Components |
| Description | 10 Amp Silicon Carbide Schottky Diode |
| Buy | Stock & Price |
FEATURES
● Zero Reverse Recovery Current● Merged PiN Schottky (MPS) Diodes Technologies
● Positive Temperature Coefficient
● High-Speed Switching
● Epoxy Meets UL 94 V-0 Flammability Rating
● Halogen Free. “Green” Device (Note1)
● Lead Free Finish/RoHS Compliant(Note2) ("P" Suffix designates RoHS Compliant. See ordering information) Benefits
● Temperature-Independent Performance
● Low Switching Loss
● Low Heat Dissipation Requirements
APPLICATIONS
● Solar inverter● Power Factor Correction
● Motor Drive
● Charging Pile
MAXIMUM RATINGS
Parameter Symbol Rating Unit Peak Repetitive Reverse Voltage@ Tj=25°C Surge Peak Reverse Voltage@ Tj=25°C DC Reverse Voltage@ Tj=25°C Continuous forward Current @TC=25°C @TC=132°C Non-repetitive Peak Forward Surge Current @TC=25°C, tp=10ms, Half Sine Pulse Power Dissipation @TC=25°C @TC=110°C i2t Value@ TC=25°C ,tp=10ms VRRM VRSM VDC IF IFSM PD ∫i2dt 650 V 650 V 650 V 20 A 10 60 A 80 W 34 18 A2S Note1:Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds.
