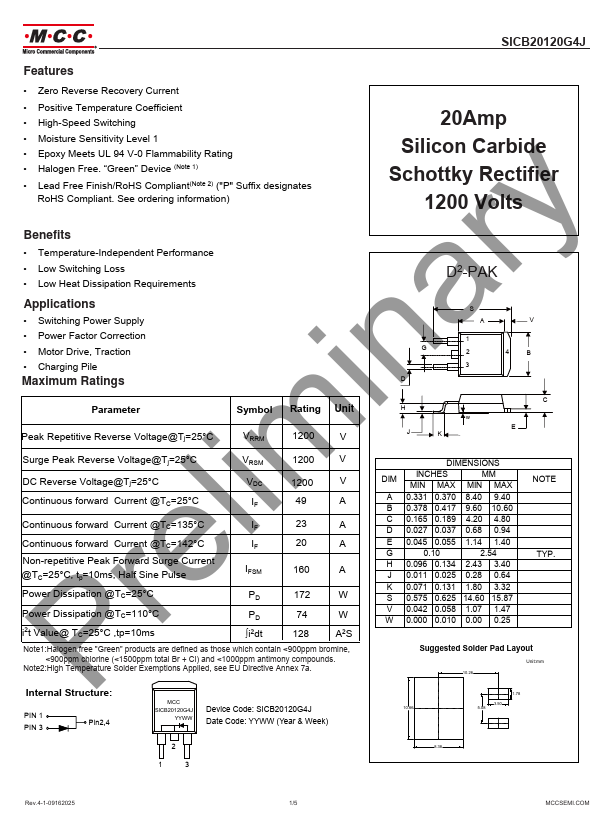

SICB20120G4J Datasheet Summary
Features
- Zero Reverse Recovery Current
- Positive Temperature Coefficient
- High-Speed Switching
20Amp
- Moisture Sensitivity Level 1
Silicon Carbide
- Epoxy Meets UL 94 V-0 Flammability Rating
- Halogen Free. “Green” Device (Note 1)
Schottky Rectifier
- Lead Free Finish/RoHS pliant(Note 2) ("P" Suffix designates
RoHS pliant. See ordering information)
1200 Volts Benefits y
- Temperature-Independent Performance
- Low Switching Loss r
- Low Heat Dissipation Requirements
Applications
- Switching Power Supply a
- Power Factor Correction
- Motor Drive, Traction
- Charging Pile in Maximum Ratings
Parameter
Symbol Rating Unit
Peak Repetitive Reverse Voltage@Tj=25°C
VRRM
1200
V
Surge Peak Reverse Voltage@Tj=25°C DC Reverse Voltage@Tj=25°C lim Continuous forward Current @TC=25°C
VRSM VDC...
