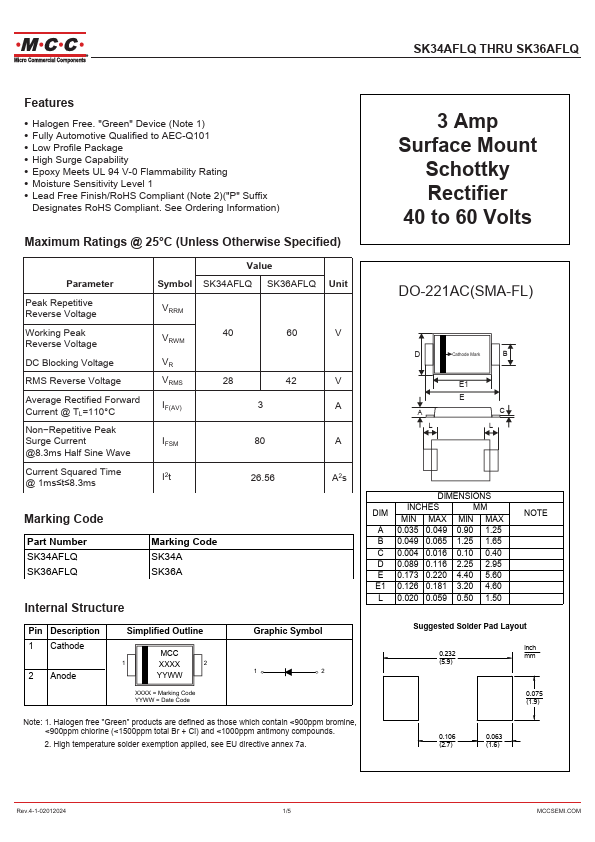

SK36AFLQ Datasheet 3 Amp Surface Mount Schottky Rectifier

Manufacturer: Micro Commercial Components

Download the SK36AFLQ datasheet PDF. This datasheet also includes the SK34AFLQ variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SK34AFLQ-MCC.pdf) that lists specifications for multiple related part numbers.

General Description

1 Cathode 2 Anode Simplified Outline MCC 1 XXXX 2 YYWW XXXX = Marking Code YYWW = Date Code Graphic Symbol 1 2 DO-221AC(SMA-FL) D Cathode Mark B A L E1 E C L DIMENSIONS DIM INCHES MIN MAX MM MIN MAX A 0.035 0.049 0.90 1.25 B 0.049 0.065 1.25 1.65 C 0.004 0.016 0.10 0.40 D 0.089 0.116 2.25 2.95 E 0.173 0.220 4.40 5.60 E1 0.126 0.181 3.20 4.60 L 0.020 0.059 0.50 1.50 NOTE Suggested Solder Pad Layout inch 0.232 mm (5.9) 0.075 (1.9) Note: 1.

Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony compounds.

2.

Overview

SK34AFLQ THRU SK36AFLQ.

Key Features

  • Halogen Free. "Green" Device (Note 1).
  • Fully Automotive Qualified to AEC-Q101.
  • Low Profile Package.
  • High Surge Capability.
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Moisture Sensitivity Level 1.
  • Lead Free Finish/RoHS Compliant (Note 2)("P" Suffix Designates RoHS Compliant. See Ordering Information) 3 Amp Surface Mount Schottky Rectifier 40 to 60 Volts Maximum Ratings @ 25°C (Unless Otherwise Specified) Parameter Peak Repetitive.
