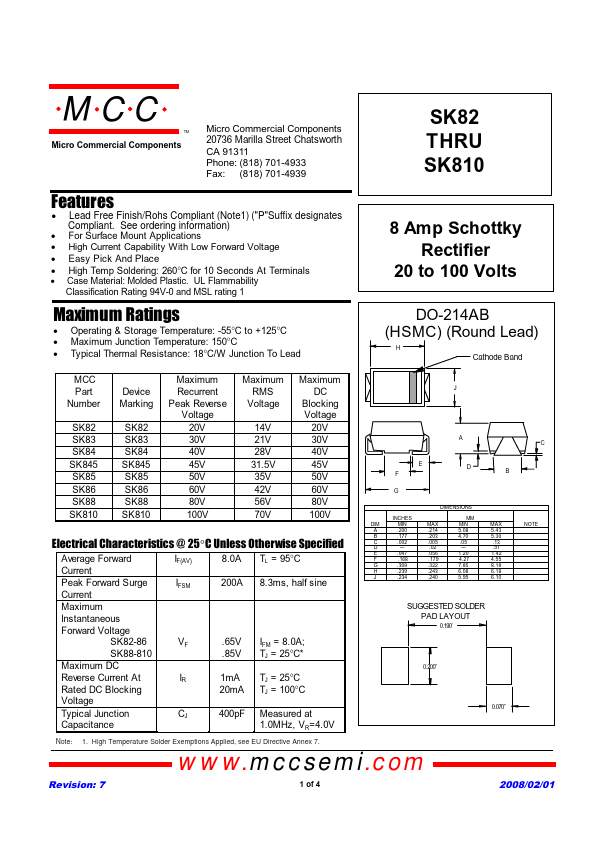

SK82 Datasheet Summary
MCC TM
Micro mercial ponents
omponents 20736 Marilla Street Chatsworth !"# $
% !"#
SK82 THRU SK810
Features
- Lead Free Finish/Rohs pliant (Note1) ("P"Suffix designates pliant. See ordering information)
- For Surface Mount Applications
- High Current Capability With Low Forward Voltage
- Easy Pick And Place
- High Temp Soldering: 260°C for 10 Seconds At Terminals
- Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0 and MSL rating 1
Maximum Ratings
- Operating & Storage Temperature: -55°C to +125°C
- Maximum Junction Temperature: 150°C
- Typical Thermal Resistance: 18°C/W Junction To Lead
8 Amp Schottky Rectifier
20 to 100 Volts
DO-214AB (HSMC) (Round Lead)
H
Cathode Band
MCC Part Number
SK82 SK83 SK84 SK845 SK85 SK86 SK88 SK810
Device Marking
SK82 SK83 SK84 SK845 SK85 SK86 SK88 SK810
Maximum Recurrent Peak Reverse Voltage
20V 30V 40V 45V 50V 60V 80V 100V
Maximum...
