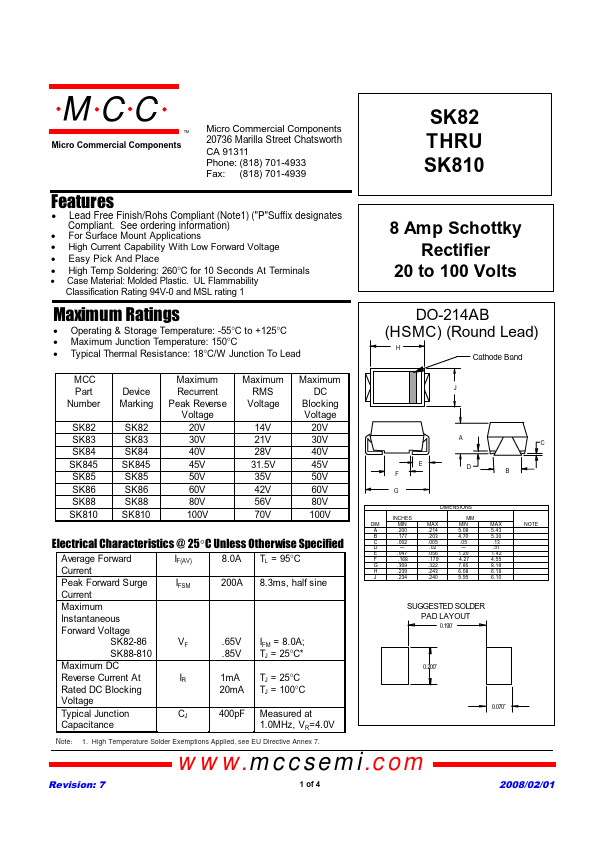

Micro Commercial Components SK84
8 Amp Schottky Rectifier
| Part No. | SK84 |
|---|---|
| Datasheet | SK84 Download |
| Manufacturer |  Micro Commercial Components |
| Description | 8 Amp Schottky Rectifier |
| Buy | Stock & Price |
FEATURES
● Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant. See ordering information)● For Surface Mount
APPLICATIONS
● High Current Capability With Low Forward Voltage● Easy Pick And Place
● High Temp Soldering: 260°C for 10 Seconds At Terminals
● Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 and MSL rating 1
MAXIMUM RATINGS
● Operating & Storage Temperature: -55°C to +125°C● Maximum Junction Temperature: 150°C
● Typical Thermal Resistance: 18°C/W Junction To Lead 8 Amp Schottky Rectifier 20 to 100 Volts DO-214AB (HSMC) (Round Lead) H Cathode Band MCC Part Number SK82 SK83 SK84 SK845 SK85 SK86 SK88 SK810 Device Marking SK82 SK83 SK84 SK845 SK85 SK86 SK88 SK810 Maximum Recurrent Peak Reverse Voltage 20V 30V 40V 45V 50V 60V 80V 100V Maximum RMS Voltage 14V 21V 28V 31.5V 35V 42V 56V 70V Maximum DC Blocking Voltage 20V 30V 40V 45V 50V 60V 80V 100V
ELECTRICAL CHARACTERISTICS
@ 25°C Unless Otherwise Specified Average Forward Current IF...
