Micro Commercial Components SM5817PL
1A Schottky Rectifier
| Part No. | SM5817PL |
|---|---|
| Datasheet | SM5817PL Download |
| Manufacturer |  Micro Commercial Components |
| Description | 1A Schottky Rectifier |
| Buy | Stock & Price |

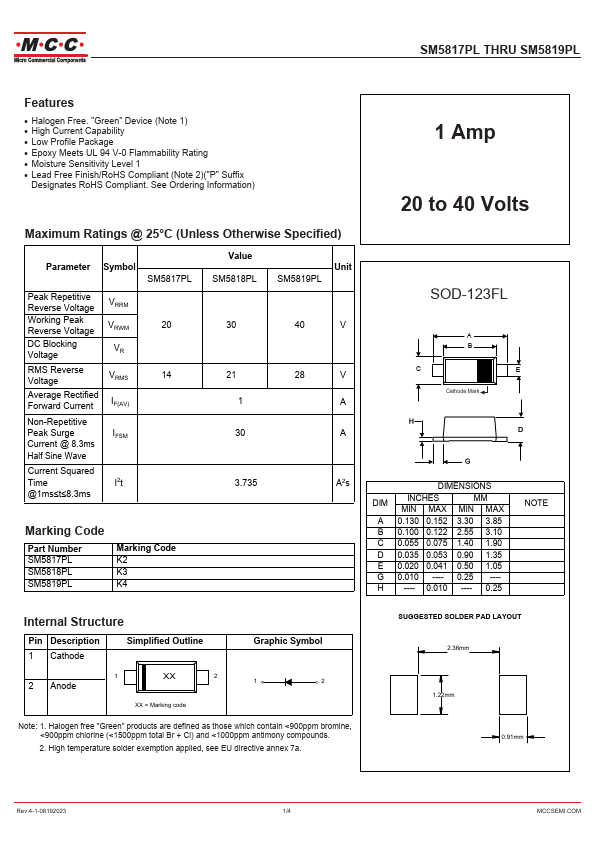

FEATURES
● Halogen Free. "Green" Device (Note 1)● High Current Capability
● Low Profile Package
● Epoxy Meets UL 94 V-0 Flammability Rating
● Moisture Sensitivity Level 1
● Lead Free Finish/RoHS Compliant (Note 2)("P" Suffix Designates RoHS Compliant. See Ordering Information)
MAXIMUM RATINGS
@ 25°C (Unless Otherwise Specified) Parameter Symbol SM5817PL Peak Repetitive Reverse Voltage VRRM Working Peak Reverse Voltage VRWM 20 DC Blocking Voltage VR RMS Reverse Voltage VRMS 14 Average Rectified Forward Current IF(AV) Non-Repetitive Peak Surge IFSM Current @ 8.3ms Half Sine Wave Current Squared Time I2t @1ms≤t≤8.3ms Value SM5818PL 30 21 1 30 3.735 Unit SM5819PL 40 V 28 V A A A2s Marking Code Part Number SM5817PL SM5818PL SM5819PL Marking Code K2 K3 K4 1 Amp 6XUIDFH 0RXQW 6FKRWWN\ 5HFWLILHU 20 to 40 Volts SOD-123FL A B C E Cathode Mark DIMENSIONS DIM INCHES MIN MAX MM MIN MAX A 0.130 0.152 3.30 3.85 B 0.100 0.122 2.55 3.10 C 0.055 0.075 1.40 1.90 D 0.035 0.053 0.90 1.35 E 0.020 0.041 0.5...
