SM5818PL - Schottky Barrier Diodes

Product Overview

MCC

Part number	SM5818PL
Manufacturer	MCC
File Size	274.52 KB
Description	Schottky Barrier Diodes
Datasheet	SM5818PL Datasheet
Note	This datasheet PDF includes multiple part numbers: SM5818PL, SM5817PL. Please refer to the document for exact specifications by model.

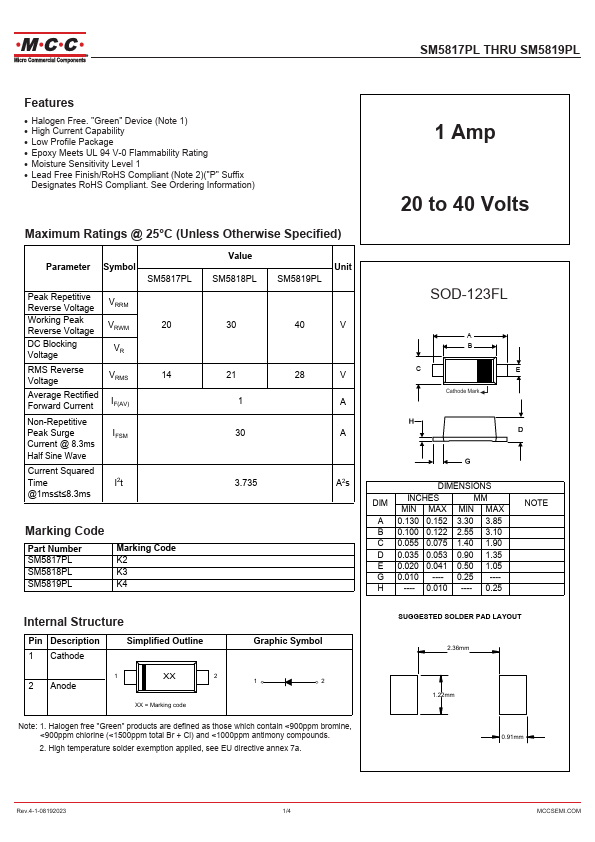

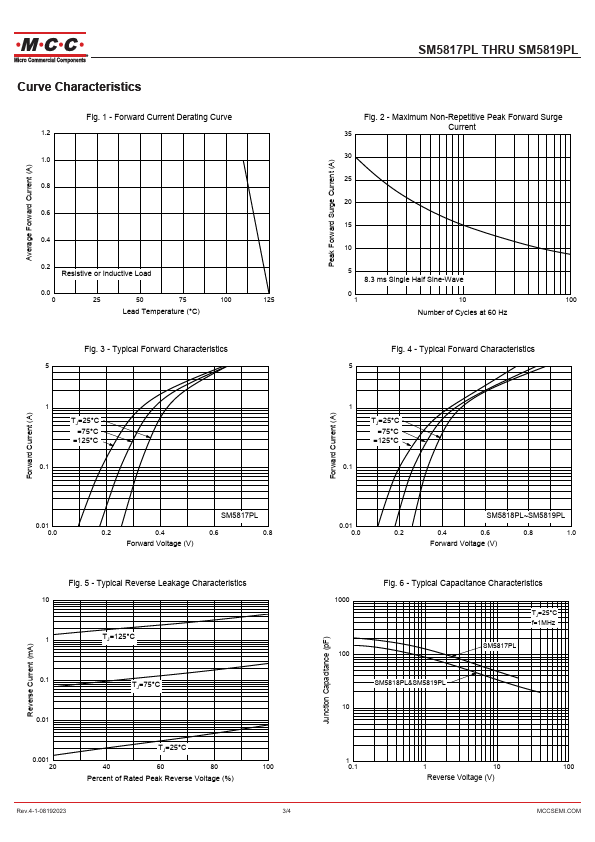

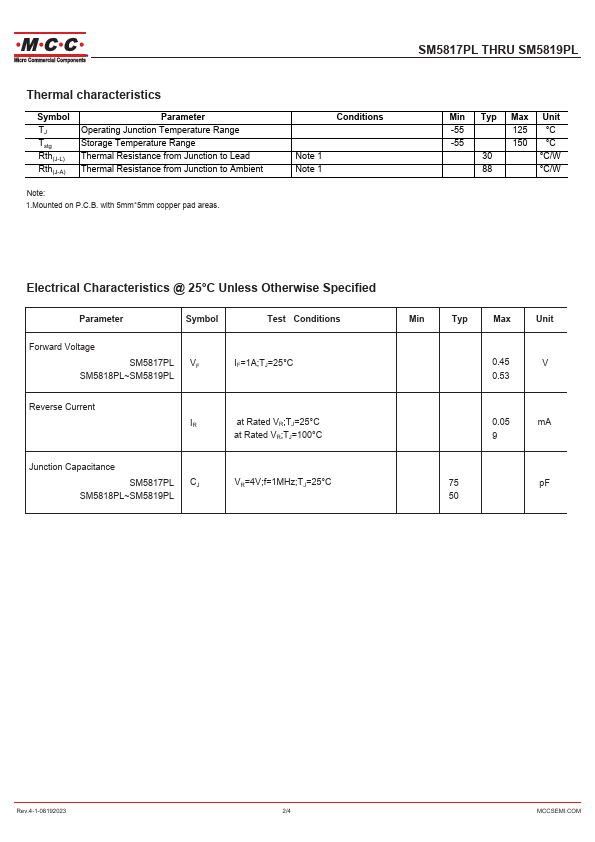

Additional preview pages of the SM5818PL datasheet.

Halogen free available upon request by adding suffix "-HF".
High-Surge-Capability.
Low Forward Voltage.
Low-Profile-Package.
Lead Free Finish/RoHS Compliant(Note 1) ("P" Suffix designates RoHS Compliant. See ordering information) Schottky Barrier Diodes 20 to 40 Volts Mechanical Data.
Packaging: SOD-123FL.
Epoxy meets UL 94 V-0 flammability rating.
Moisture Sensitivity Level 1.
Marking Code: SM5817PL---K2;SM5818P.
