Download the SM5819PL datasheet PDF.
This datasheet also covers the SM5817PL variant, as both devices belong to the same 1a schottky rectifier family and are provided as variant models within a single manufacturer datasheet.
General Description
Note: 1.
Key Features
Halogen Free. "Green" Device (Note 1).
High Current Capability.
Low Profile Package.
Epoxy Meets UL 94 V-0 Flammability Rating.
Moisture Sensitivity Level 1.
Lead Free Finish/RoHS Compliant (Note 2)("P" Suffix
Designates RoHS Compliant. See Ordering Information)
Maximum Ratings @ 25°C (Unless Otherwise Specified)
Parameter Symbol SM5817PL
Peak Repetitive Reverse Voltage
VRRM
Working Peak Reverse Voltage
VRWM
20
DC Blocking Voltage
V.
Full PDF Text Transcription for SM5819PL (Reference)
Note: Below is a high-fidelity text extraction (approx. 800 characters) for
SM5819PL. For precise diagrams, and layout, please refer to the original PDF.

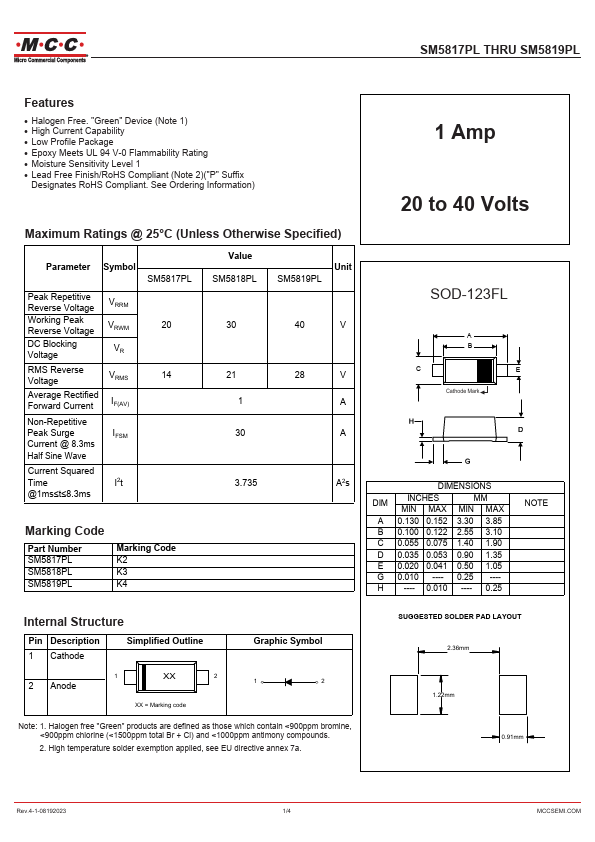

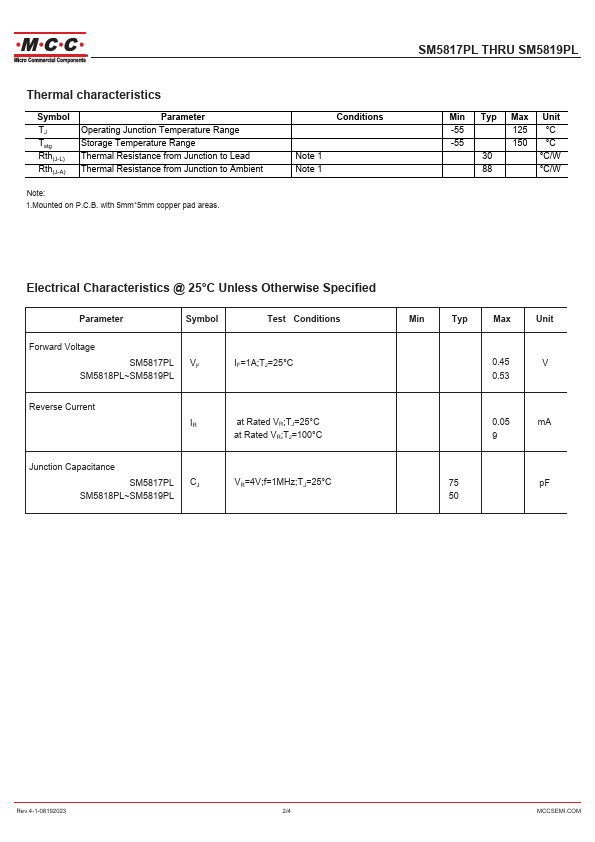

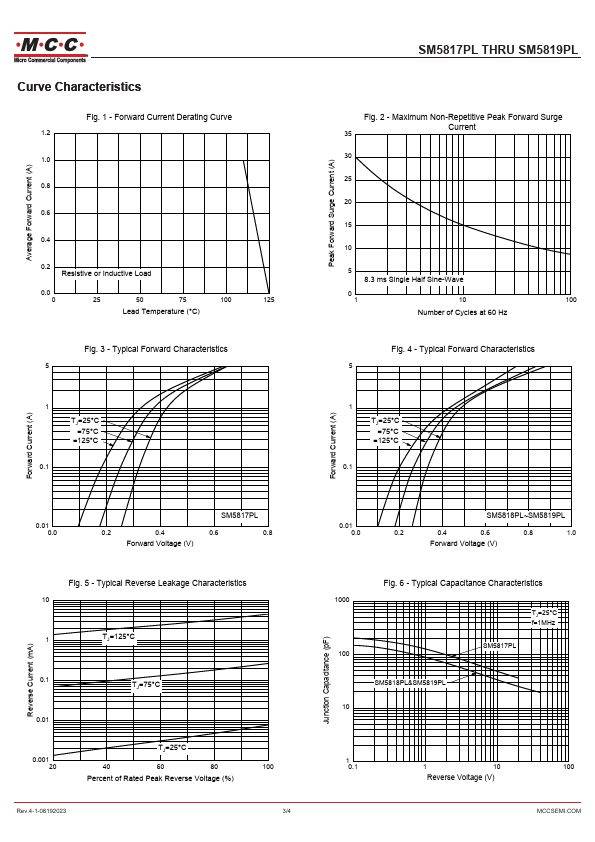

SM5817PL THRU SM5819PL Features • Halogen Free. "Green" Device (Note 1) • High Current Capability • Low Profile Package • Epoxy Meets UL 94 V-0 Flammability Rating • Mois...
View more extracted text
Low Profile Package • Epoxy Meets UL 94 V-0 Flammability Rating • Moisture Sensitivity Level 1 • Lead Free Finish/RoHS Compliant (Note 2)("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings @ 25°C (Unless Otherwise Specified) Parameter Symbol SM5817PL Peak Repetitive Reverse Voltage VRRM Working Peak Reverse Voltage VRWM 20 DC Blocking Voltage VR RMS Reverse Voltage VRMS 14 Average Rectified Forward Current IF(AV) Non-Repetitive Peak Surge IFSM Current @ 8.3ms Half Sine Wave Current Squared Time I2t @1ms≤t≤8.3ms Value SM5818PL 30 21 1 30 3.
SM5819PL Datasheet
