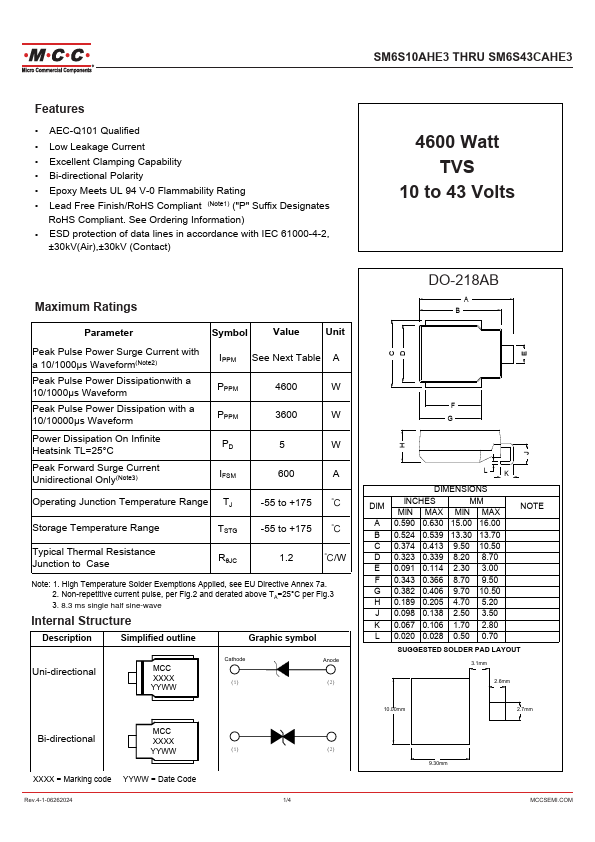

SM6S13AHE3 - 4600 Watt TVS

Download the SM6S13AHE3 datasheet PDF. This datasheet also includes the SM6S10AHE3 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SM6S10AHE3-MCC.pdf) that lists specifications for multiple related part numbers.

General Description

Simplified outline Graphic symbol Uni-directional MCC XXXX YYWW Cathode （1） Anode （2） Bi-directional MCC XXXX YYWW （1） XXXX = Marking code YYWW = Date Code Rev.4-1-06262024 （2） 1/4 DO-218AB A B E D C F G H J LK DIMENSIONS DIM INCHES MM MIN MAX MIN MAX A 0.590 0.630 15.00 16.00 B 0.524 0.539 13.30 13.70 C 0.374 0.413 9.50 10.50 D 0.323 0.339 8.20 8.70 E 0.091 0.114 2.30 3.00 F 0.343 0.366 8.70 9.50 G 0.382 0.406 9.70 10.50 H 0.189 0.205 4.70 5.20 J 0.098 0.138 2.50 3.50 K 0.067 0.106 1.70 2.80 L 0.020 0.028 0.50 0.70 NOTE SUGGESTED SOLDER PAD LAYOUT 3.1mm 2.6mm 10.00mm 2.7mm 9.30mm MCCSEMI.COM SM6S10AHE3 THRU SM6S43CAHE3 Electrical Characteristics @ 25°C Unless Otherwise Specified MCC Part Number Working Peak Breakdown Voltage VBR @IT Reve

Overview

SM6S10AHE3 THRU SM6S43CAHE3.

Key Features

  • AEC-Q101 Qualified.
  • Low Leakage Current.
  • Excellent Clamping Capability.
  • Bi-directional Polarity.
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Lead Free Finish/RoHS Compliant (Note1) ("P" Suffix Designates RoHS Compliant. See Ordering Information).
  • ESD protection of data lines in accordance with IEC 61000-4-2, ±30kV(Air),±30kV (Contact) 4600 Watt TVS 10 to 43 Volts Maximum Ratings Parameter Peak Pulse Power Surge Current with a 10/1.
